76 Cliché Assembly (US)
16.3 Cliché installation
To allow the cliché to be assembled, the pad should not yet be installed in the machine.
See Chapter 16.2.1 "Remove pad" on page 72.

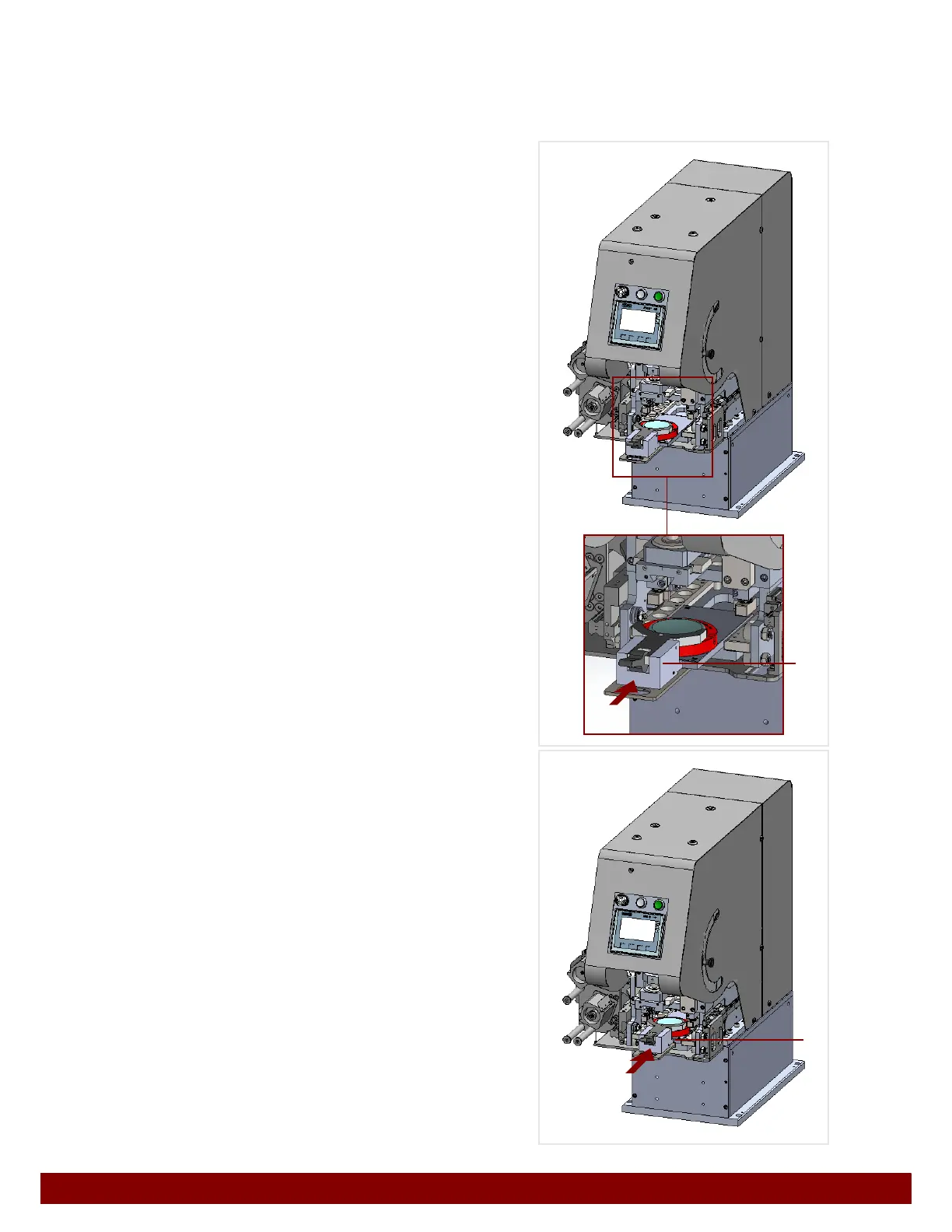

16.3.1 Insert cliché
Insert the setup tool B into the cliché hol-
der together with the ink cup and the cliché
and push it to the back.
See Chapter 17.1 "Cliché types" on
page 81.
Push the cliché
C back as far as the limit
stop.
B
C
