MCI ink cup 85
18.3 Overview
Pad printing machines can be equipped with ink cups of different sizes and designs.
In the majority of cases, the principle structure of the ink cups is identical. Slight deviations
from the illustrated images are possible.
Assembly works are to be performed on a level and soft underlay (e.g. rubber mat) in
order to ensure that the sensitive blade edge belonging to the doctor ring is not damaged.

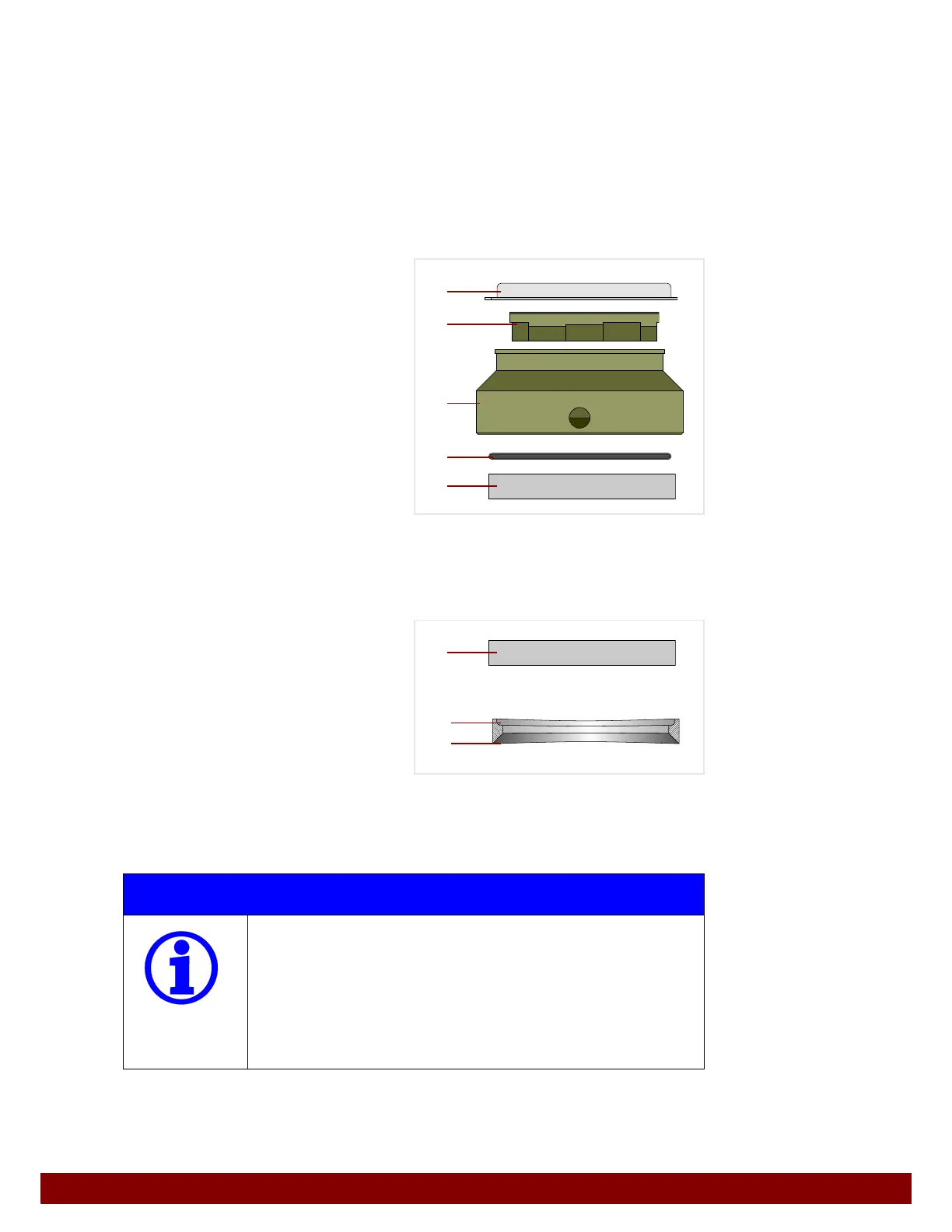

18.4 Individual components
B
Cover
C Magnetic ring
D Ink cup
E Seal
F Doctor ring
18.5 Doctor ring installation and removal
18.5.1 Handling instructions
Depending upon the design, the doctor
ring
B is manufactured from carbide metal
or ceramics.
Cross-section
A recess
C is present on the upper side
for the seal.
The sharp ground blade edge
D can be
found on the lower side.
INSTRUCTION
Doctor rings must be handled with extreme care and may not be dis-
torted or fall.
• The hard material may fracture or become chipped if twisted or
subjected to a severe impact.
• The precisely ground blade edge may not exhibit any eruptions
or notches.
• Damage to the blade edge leads to ink leakage.
D
C
B
E
F
C
B
D
