Transtech SealCup Express - Remove Cliché

To Next Page

To Previous Page

Cliché Assembly (US) 75

16.2.5 Remove cliché

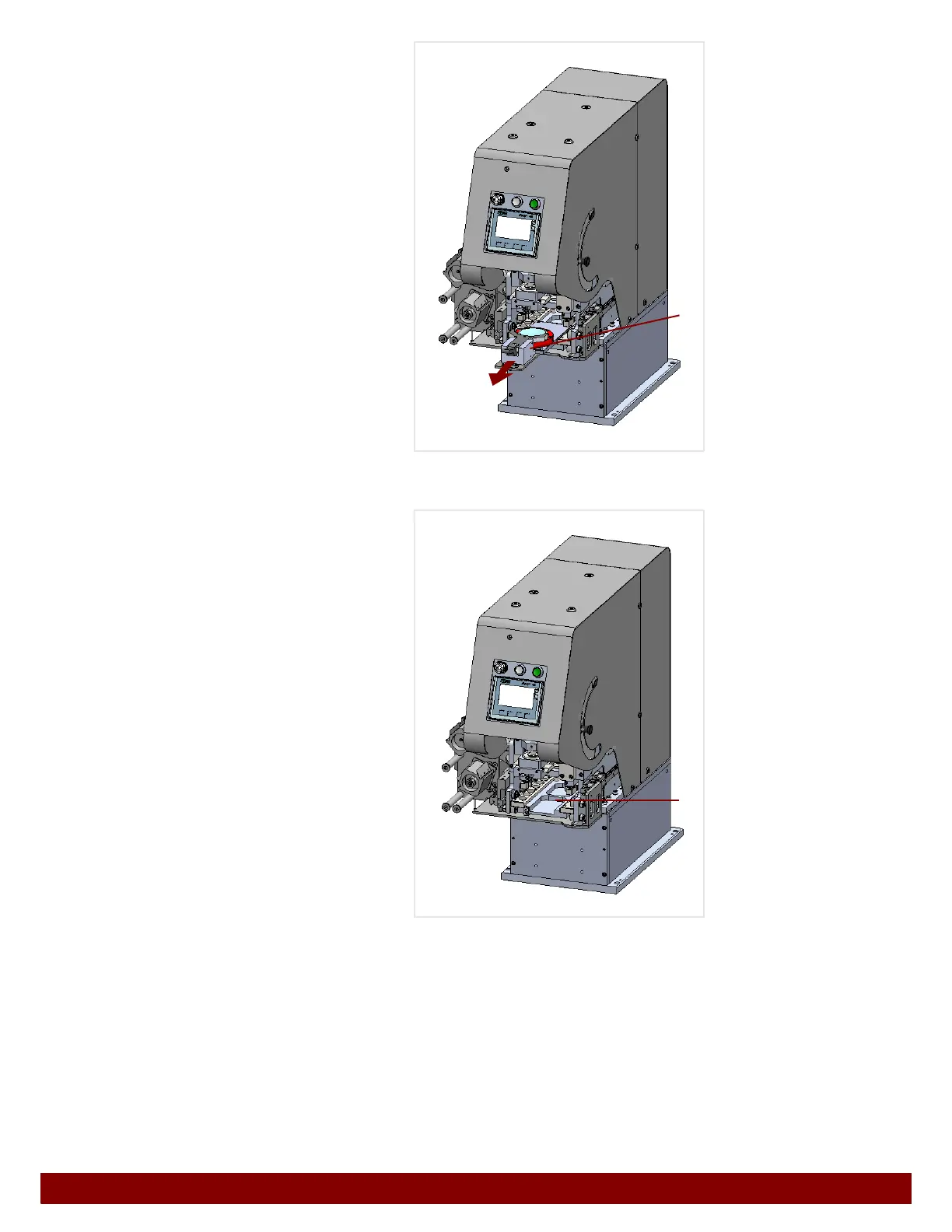

Pull the setup tool F together with the ink

cup and cliché forwards out of the cliché

holder.

See Chapter 17.1 "Cliché types" on

page 81.

The cliché holder

G is empty.
