38 Commissioning
11.2 Connecting the foot switch (optional)

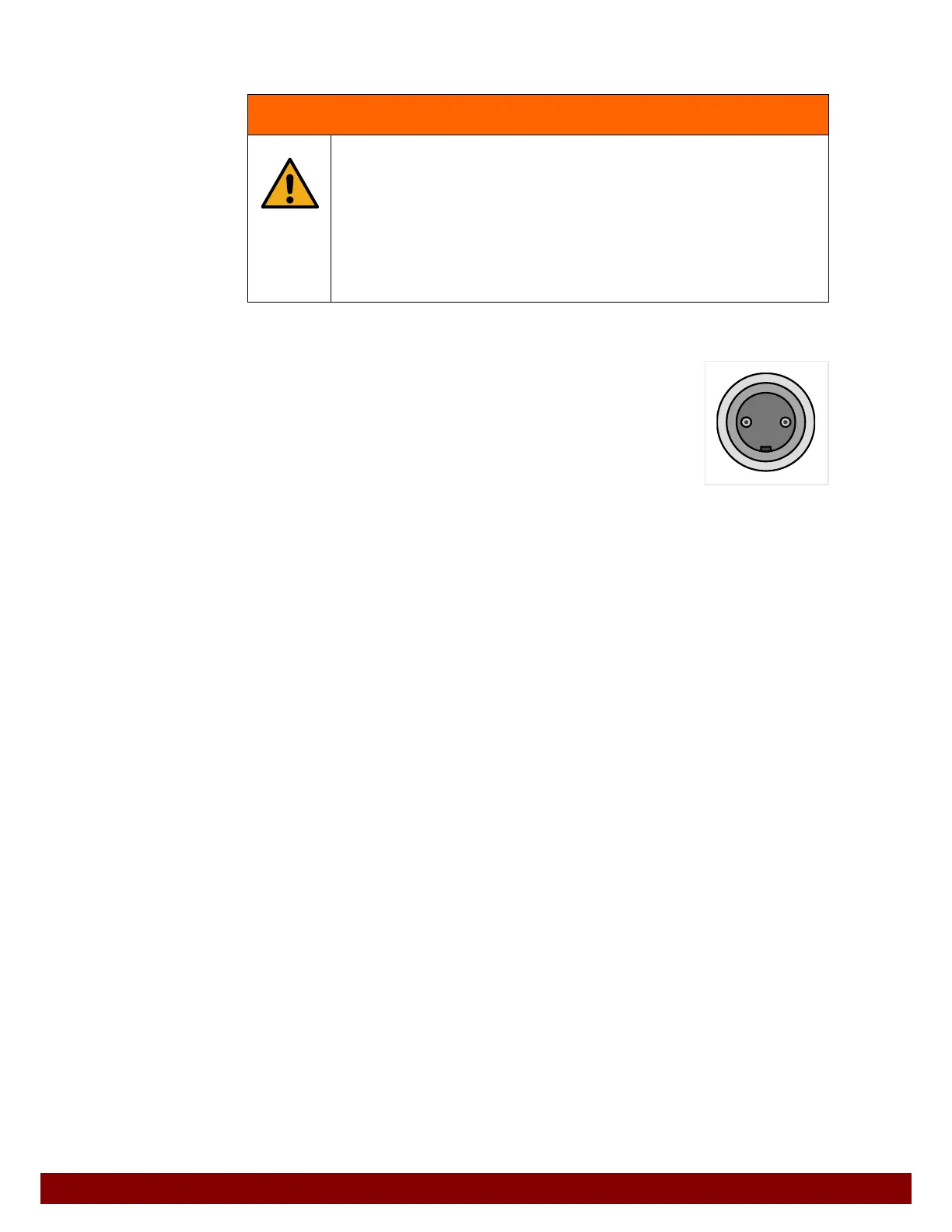

The optionally available foot switch is connected to a port at the back
of the machine.
Pressing the foot switch carries out the set function.
The port is two-pole, the contact in the foot switch must be a normally
open (NO) contact.
The signals from the foot switch will only be taken into consideration if the necessary set-
tings have been applied in the settings menu.
See Chapter 26.9 "Foot switch" on page 138.
WARNING
Incomplete safety equipment may pose risk of injury.
Incomplete safety equipment may mean that machine movements are not
safely shut off when the machine’s work area is entered. This can lead to
serious injury or death.
• The use of a foot switch is only permitted on machines with a complete
safety enclosure with a safety light curtain.
• Machines without a protective enclosure or with two-hand operation
must not be equipped with a foot switch.
