16.3.2 Secure ink cup

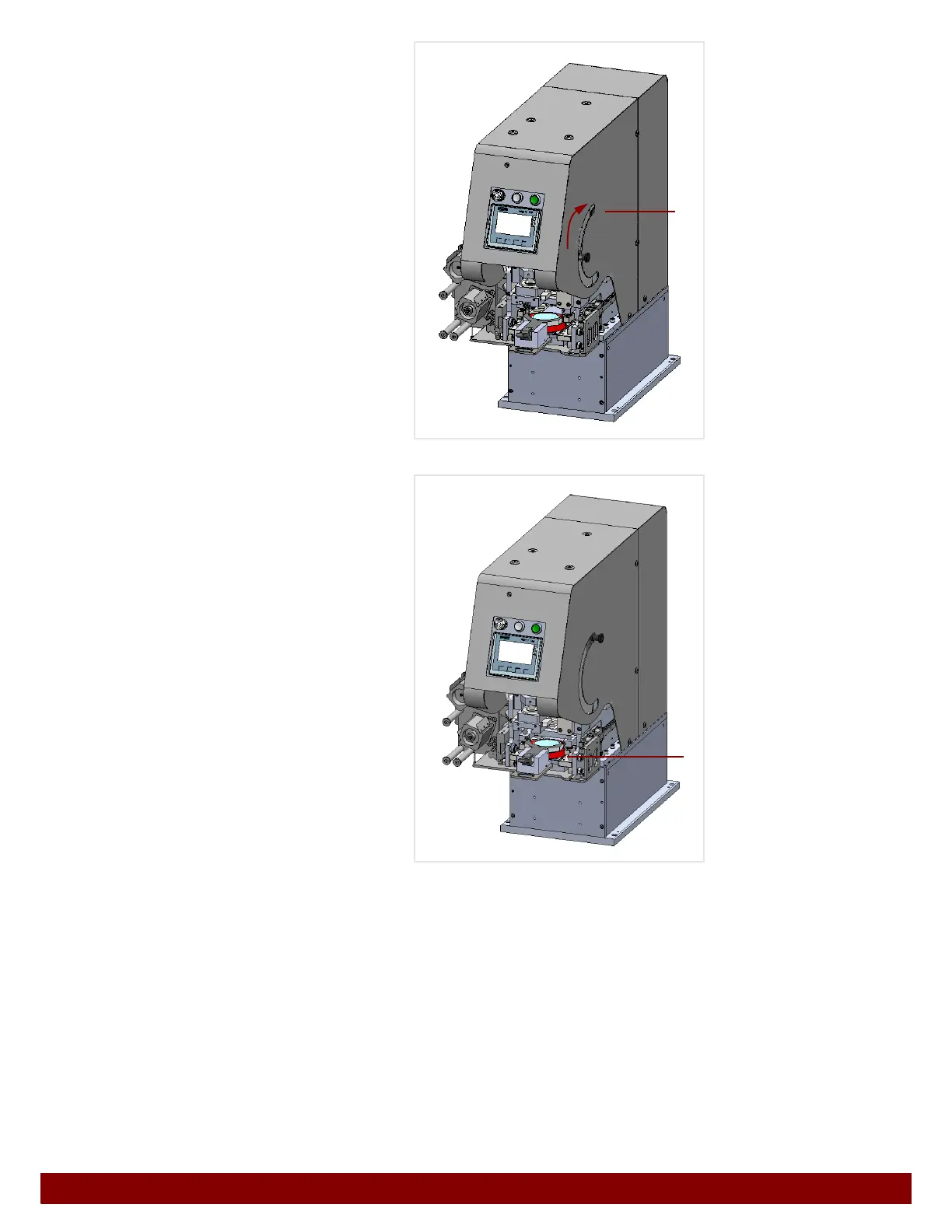

Pull out the lock pin D from the ink cup
fixing and push the lever up.
When you let go, stop the lock pin in the
upper position.
This lowers the ink cup fixing
E and secu-
res the ink cup.
The fixings must precisely grip the notches
in the ink cup.
D
E
