46 Pad Assembly Screw Fastening

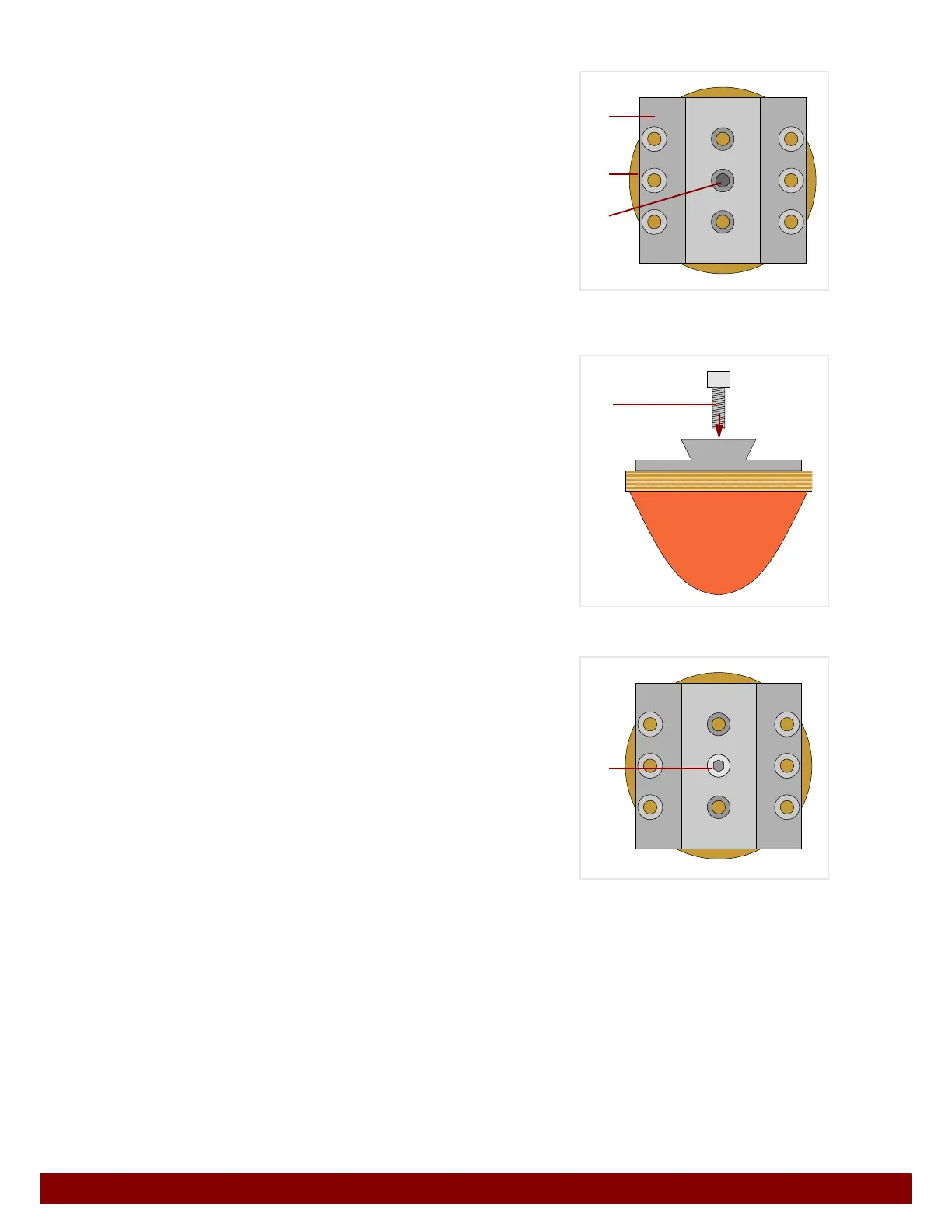

13.3.2 Pad installation
Pad sliding coupling
Position pad coupling
B on to the pad base plate
C.
In the majority of cases, the fastening generally
takes place via the centre borehole
D.
Screwing on the pad
Insert the fastening screw (M6)
E into the bore-
hole.
Tighten the fastening screw (M6)
E.
B
C
D
E
E
