Vacon 100 Applications Manual

Digital inputs
Floating
Connected to GND
(Default!)

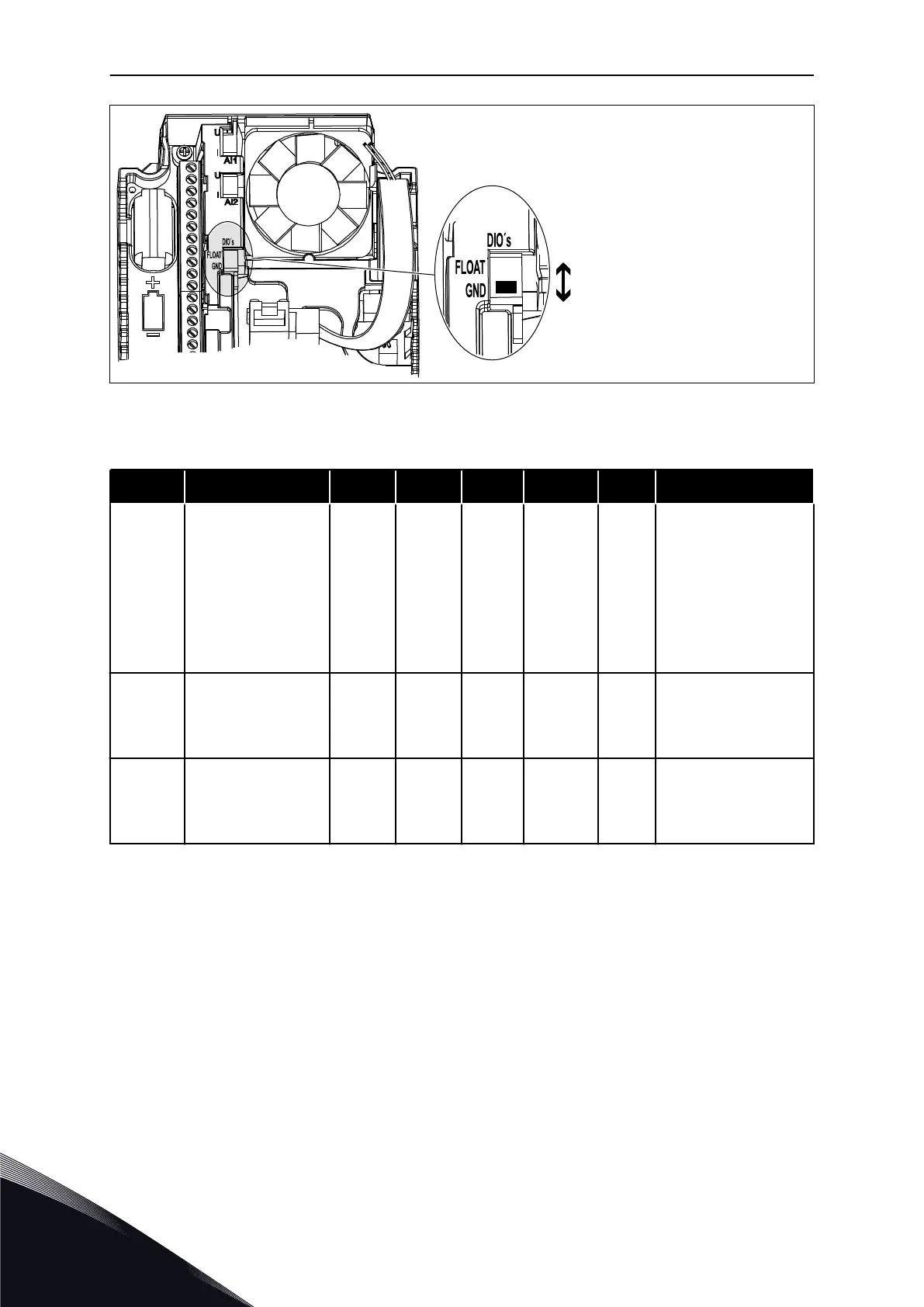

Fig. 5: The DIP switch
Table 2: M1.1 Wizards
Index Parameter Min Max Unit Default ID Description
1.1.1 Startup wizard 0 1 0 1170
0 = Do not activate
1 = Activate
The selection Activate
starts the Start-up
wizard (see Chapter
Table 1 The Start-up
wizard.
1.1.3 Multi-pump Wizard 0 1 0 1671
The selection Activate
starts the Multipump
wizard (see Chapter
2.7 Multipump wizard).
1.1.4 Fire mode Wizard 0 1 0 1672
The selection Activate
starts the Fire mode
wizard (see Chapter
2.8 Fire mode wizard).
VACON · 16 QUICK STARTUP GUIDE
1
TEL. +358 (0)201 2121 · FAX +358 (0)201 212 205

Vacon 100 Specifications

General

Product type	AC Drive
Enclosure class	IP20
EMC filter	Built-in
Power	0.25 kW - 5.5 kW
Cooling method	Fan
Braking chopper	Optional
