Vacon 100 Applications Manual

Digital inputs
Floating
Connected to GND
(Default!)

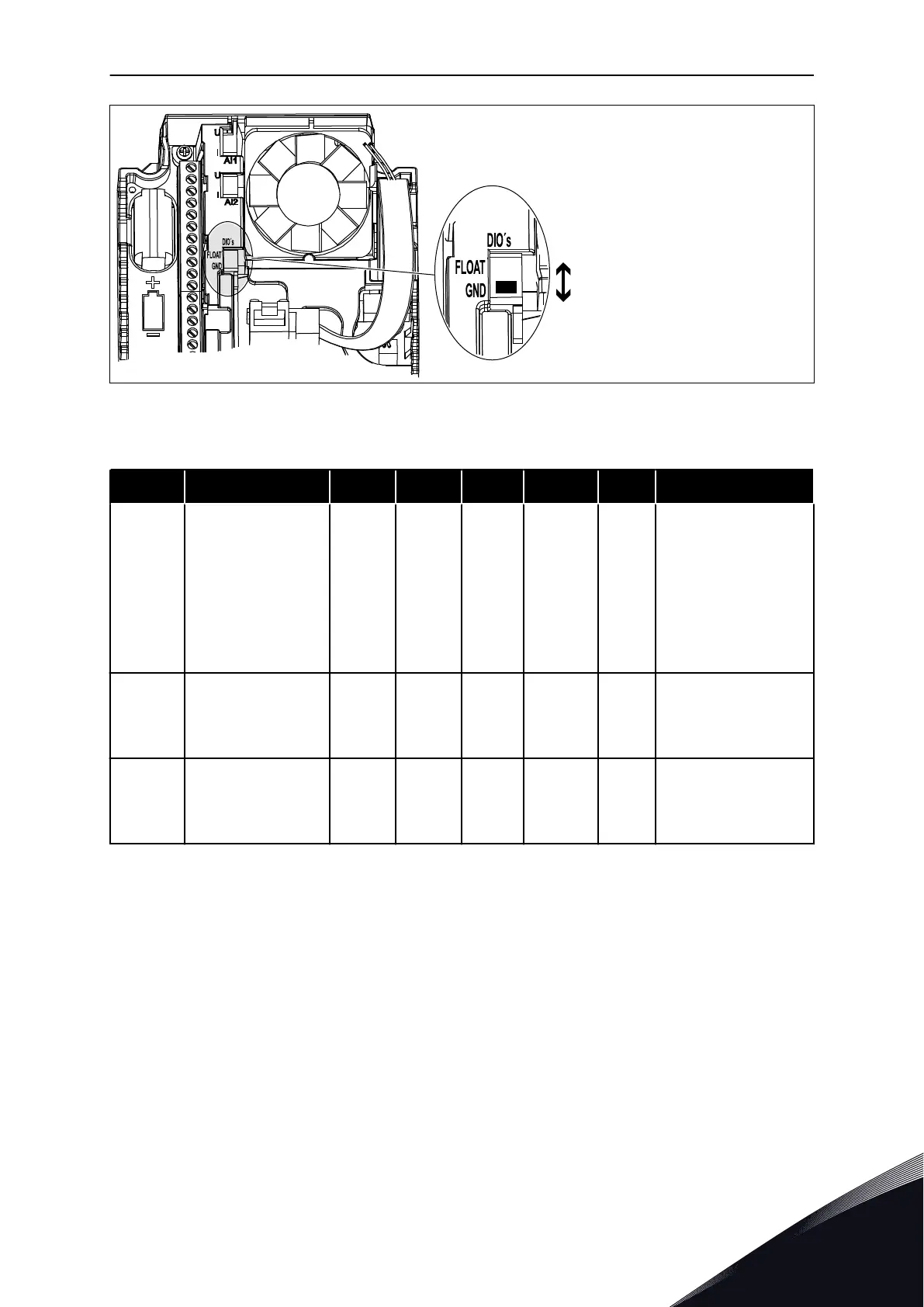

Fig. 7: The DIP switch
Table 5: M1.1 Wizards
Index Parameter Min Max Unit Default ID Description
1.1.1 Startup wizard 0 1 0 1170
0 = Do not activate
1 = Activate
The selection Activate
starts the Start-up
wizard (see Chapter
Table 1 The Start-up
wizard.
1.1.3 Multi-pump Wizard 0 1 0 1671
The selection Activate
starts the Multipump
wizard (see Chapter
2.7 Multipump wizard).
1.1.4 Fire mode Wizard 0 1 0 1672
The selection Activate
starts the Fire mode
wizard (see Chapter
2.8 Fire mode wizard).
