The machine control pattern can easily be changed
to the ISO/SAE system or to the backhoe loader
hydraulic system by changing the position of pattern
change valve (if fitted).
Use the following procedure to change the position
of the pattern change valve (The standard position
of machine is ISO/SAE pattern type (S).
1 Pull the knob (D) down and move the lever (E)
to S (ISO/SAE type) position or to the B
(Backhoe loader type) position by turning.
2 After you set the machine control pattern,
release the knob.

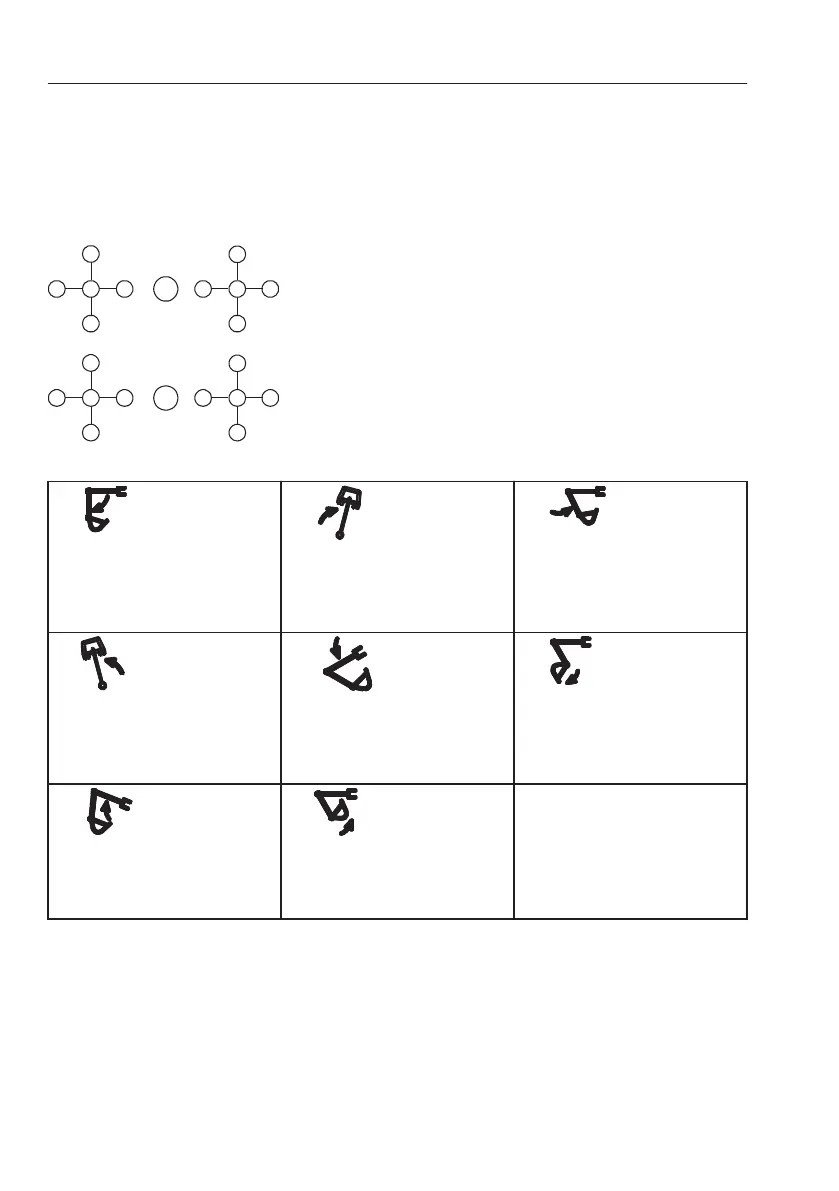

The patterns on the left side of the illustration show
the possible configurations for the left control lever.
The patterns on the right side of the illustration show
the possible configurations for the right control
lever.
V1067121
Dipper arm out (1): Move the
control lever to this position
in order to move the dipper
arm outwards.
V1067122
Swing right (2): Move the
control lever to this position
in order to swing the
superstructure to the right.
V1067123
Dipper arm in (3): Move the
control lever to this position
in order to move the dipper
arm inwards.
V1067124
Swing left (4): Move the
control lever to this position
in order to swing the
superstructure to the left.
V1067125
Boom lower (5): Move the
control lever to this position
in order to lower the boom.
V1067126
Bucket dump (6): Move the
control lever to this position
in order to dump the bucket.
V1067127
Boom raise (7): Move the
control lever to this position
in order to raise the boom.
V1067128
Bucket close (8): Move the
control lever to this position
in order to close the bucket.
HOLD (9): When the control
lever is released from any
position, the control lever will
return to the HOLD position.
Movement of the
superstructure will stop.
V1067120
9
1
24
3
9
5
68
S
7
9
5
24
7
9
1
68
B
3
104
