Volvo EC140E - Installing tooth

2 Clean the square hole in the pin.
3 Install the tool in the pin and turn it 90 degrees
either way to unlock it.
4 Turn the tool back and forth, with an outwards
motion, until the pin is removed. Use the pry bar
end of the tool if the pin gets stuck.
5 Remove the tooth.
Installing tooth
1 If changing the position of a tooth, check that the
retainer is not bent or damaged.
2 Check that the pin is not bent or damaged.
3 Clean the front part of the adapter and the holes
for the pin.
4 Place the tooth on the adapter.
5 Place the pin in the tooth. Check that the pin
flange is aligned with the tooth.
6 Install the tool in the pin and turn it back and
forth, with an inwards motion, until the pin is
installed. A click sound will occur.
7 Check that the tooth is secured to the adapter.

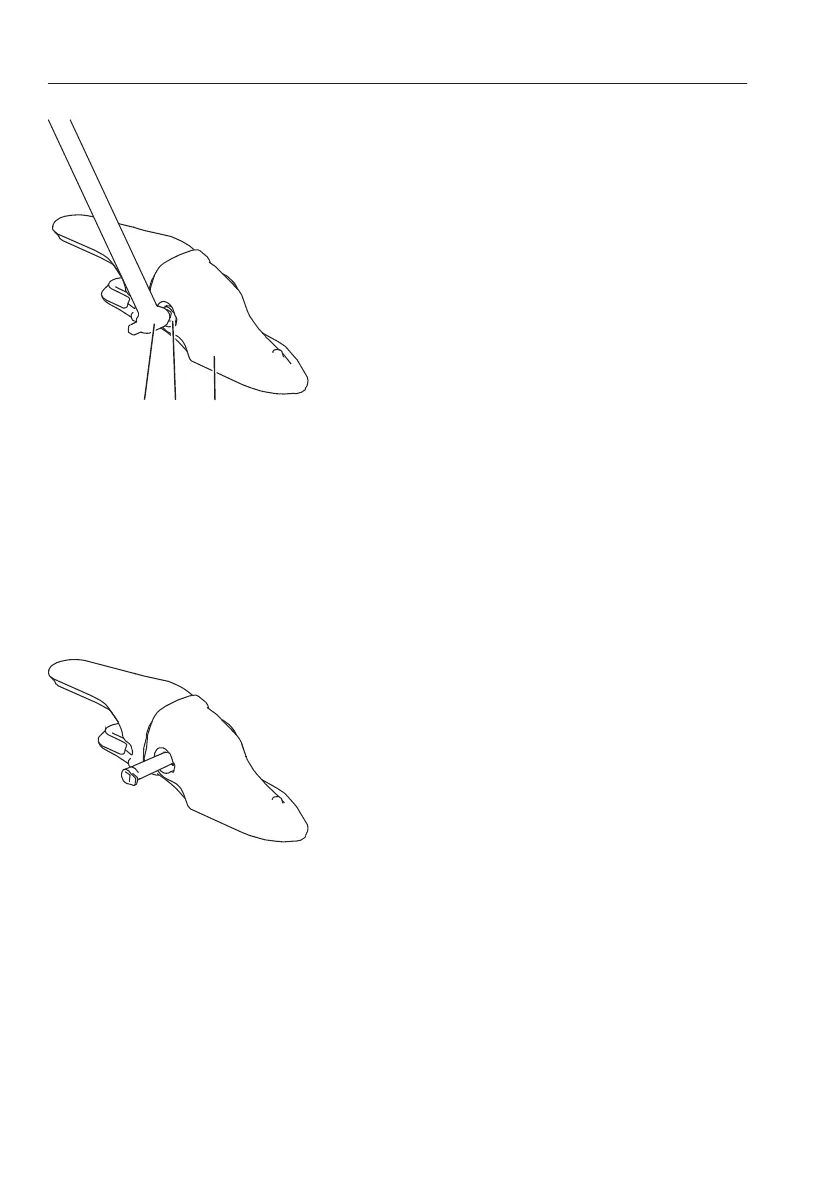

V1205076
1 32
1 Special tool
2 Pin
3 Tooth
V1205128
Tooth with pin
