Volvo EC140E - Working ranges

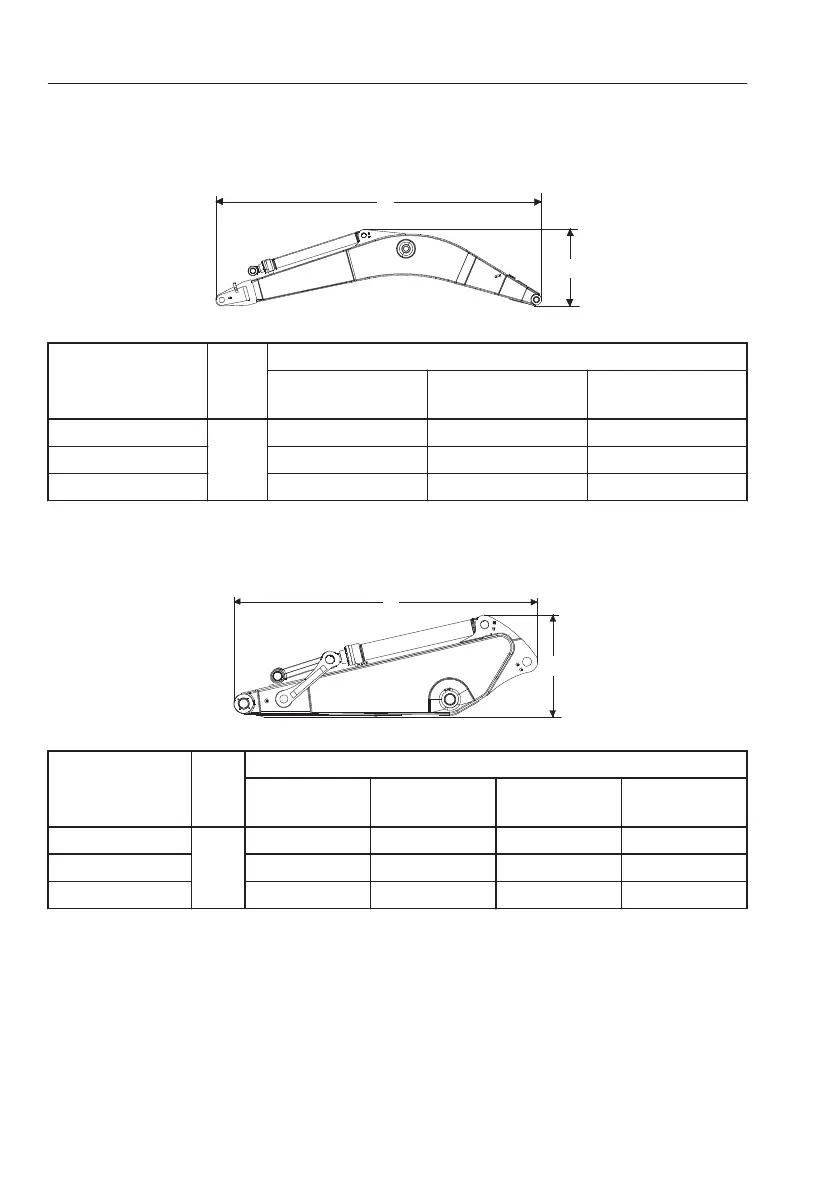

Boom and dipper arm
Boom, dimension
A
B
V1066183
Description Unit
Boom
4.0 m (13' 1")
GP
4.6 m (15' 1")
GP
4.6 m (15' 1")
VA
Length (A)
mm
(ft in)
4200 (13' 9") 4770 (15' 8") 4765 (15' 8")
Height (B) 1400 (4' 7") 1370 (4' 6") 1225 (4' 0")
Width 545 (1' 9") 545 (1' 9") 545 (1' 9")
* Includes dipper arm cylinder, piping and pin
Dipper arm, dimension
V1066184
B
A
Description Unit
Dipper arm
1.9 m (6' 3")
GP
2.1 m (6' 11")
GP
2.5 m (8' 2")
GP
3.0 m (9' 10")
GP
Length (A)
mm
(ft in)
2600 (8' 6") 2800 (9' 2") 3200 (10' 6") 3700 (12' 2")
Height (B) 690 (2' 3") 710 (2' 4") 710 (2' 4") 780 (2' 7")
Width 300 (1' 0") 300 (1' 0") 300 (1' 0") 300 (1' 0")
* Includes bucket cylinder, linkage and pin
GP: General Purpose
VA: Variable Adjustable
