Volvo EC140E - Mirror and camera (if installed) settings

Mirror and camera (if installed) settings
Mirrors, adjusting
ISO 5006 states that an imaginary boundary line
around the machine must be visible to the operator.
Park the machine straight and on level ground.
Adjust the mirrors until the imaginary boundary
line is visible to the operator, see figure below.
NOTE!
Cameras may be also used to create visibility on the
rectangular boundary. (Cameras are not adjustable
on the machine.)

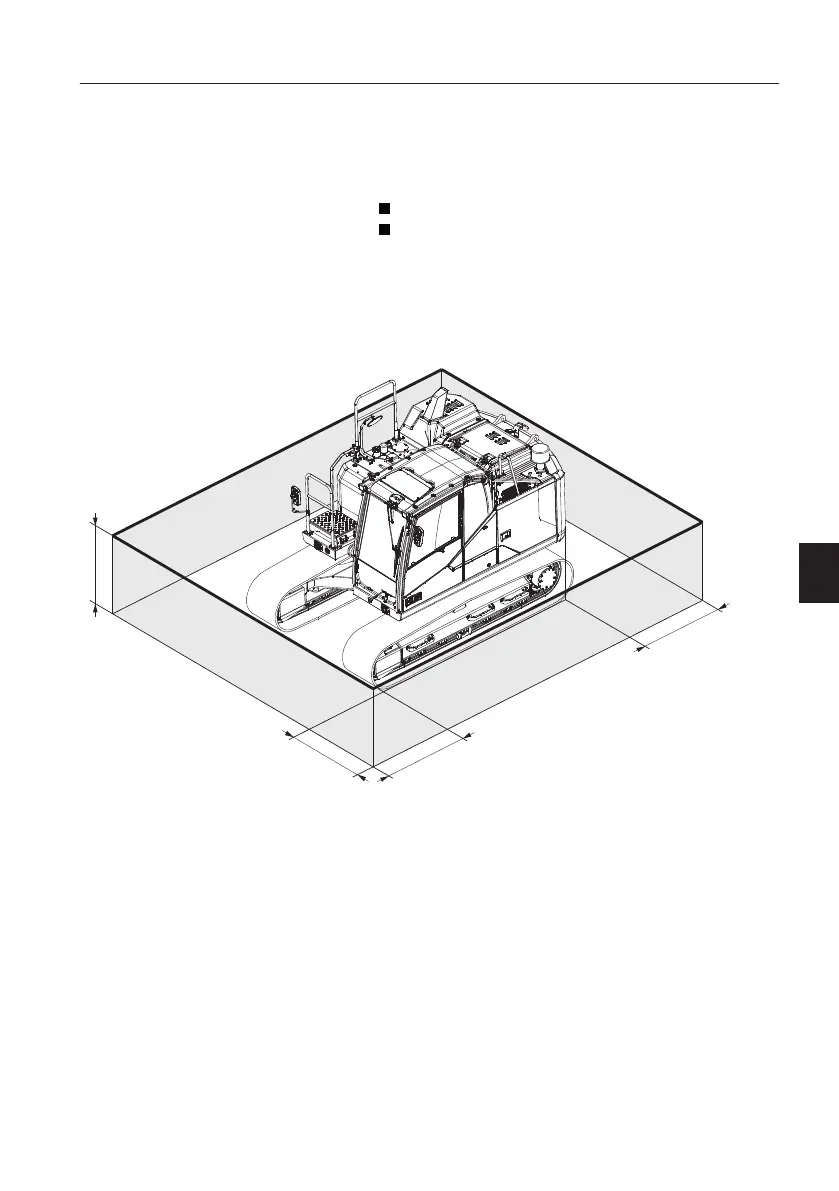

V1177376
A
B
C
D
Close-up visibility boundary according to ISO 5006 (thick line)
A 1.2 m (47.2 in)
B 1.0 m (39.4 in)
C 1.0 m (39.4 in)
D 1.0 m (39.4 in)
Operating instructions
167
