Dimensions

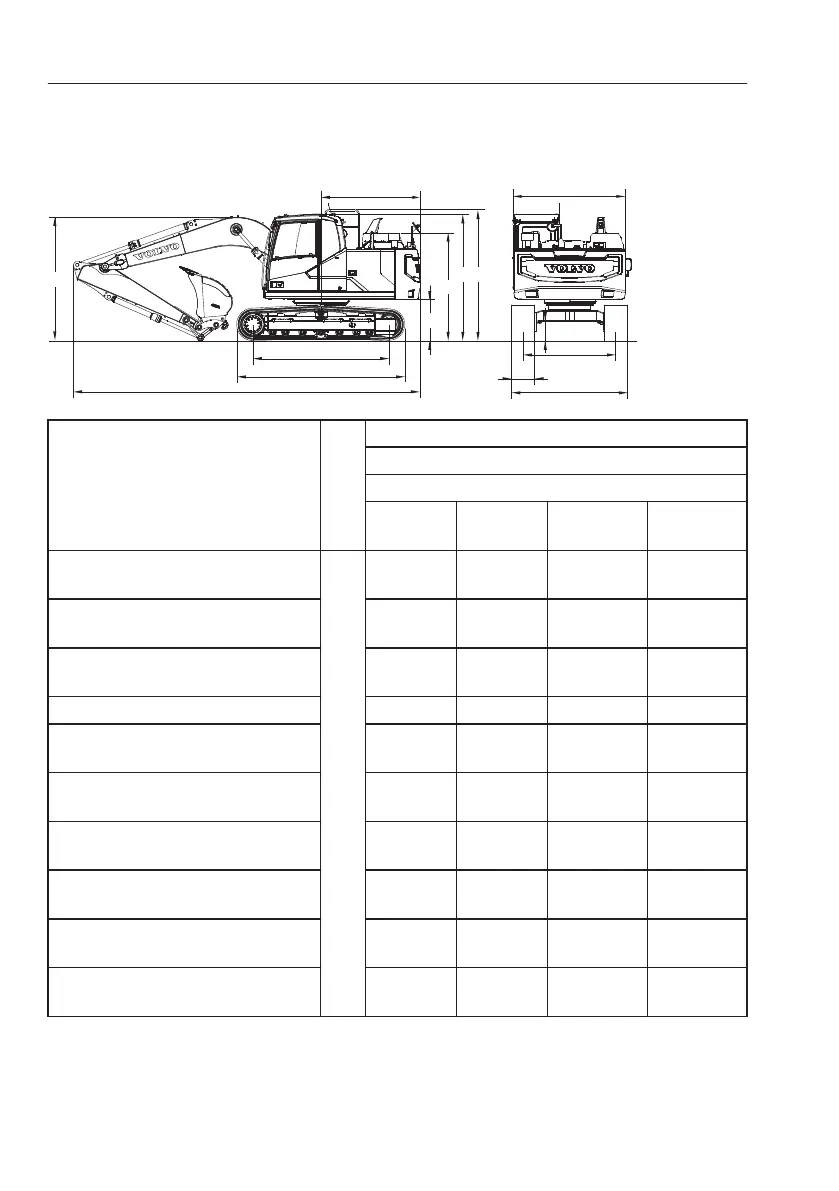

Total machine, dimensions (EC140E L)
V1149075
B
H
I
J
K
M
C D
F
G
N
E
A
L
Description Unit
Boom
4.6 m (15' 1")
Dipper arm
1.9 m (6'
3")
2.1 m (6'
11")
2.5 m (8'
2")
3.0 m (9'
10")
A. Overall width of superstructure
mm
ft-in
2490
8' 2"
2490
8' 2"
2490
8' 2"
2490
8' 2"
B. Overall width
2590
8' 6"
2590
8' 6"
2590
8' 6"
2590
8' 6"
C. Overall height of cab
2800
9' 2"
2800
9' 2"
2800
9' 2"
2800
9' 2"
D. Overall height of guardrail - - - -
E. Tail swing radius
2200
7' 3"
2200
7' 3"
2200
7' 3"
2200
7' 3"
F. Overall height of engine hood
2400
7' 10"
2400
7' 10"
2400
7' 10"
2400
7' 10"
G. *Counterweight clearance
920
3' 0"
920
3' 0"
920
3' 0"
920
3' 0"
H. Tumbler length
3040
10' 0"
3040
10' 0"
3040
10' 0"
3040
10' 0"
I. Track length
3760
12' 4"
3760
12' 4"
3760
12' 4"
3760
12' 4"
J. Track gauge
1990
6' 6"
1990
6' 6"
1990
6' 6"
1990
6' 6"
384
Specifications
Dimensions
