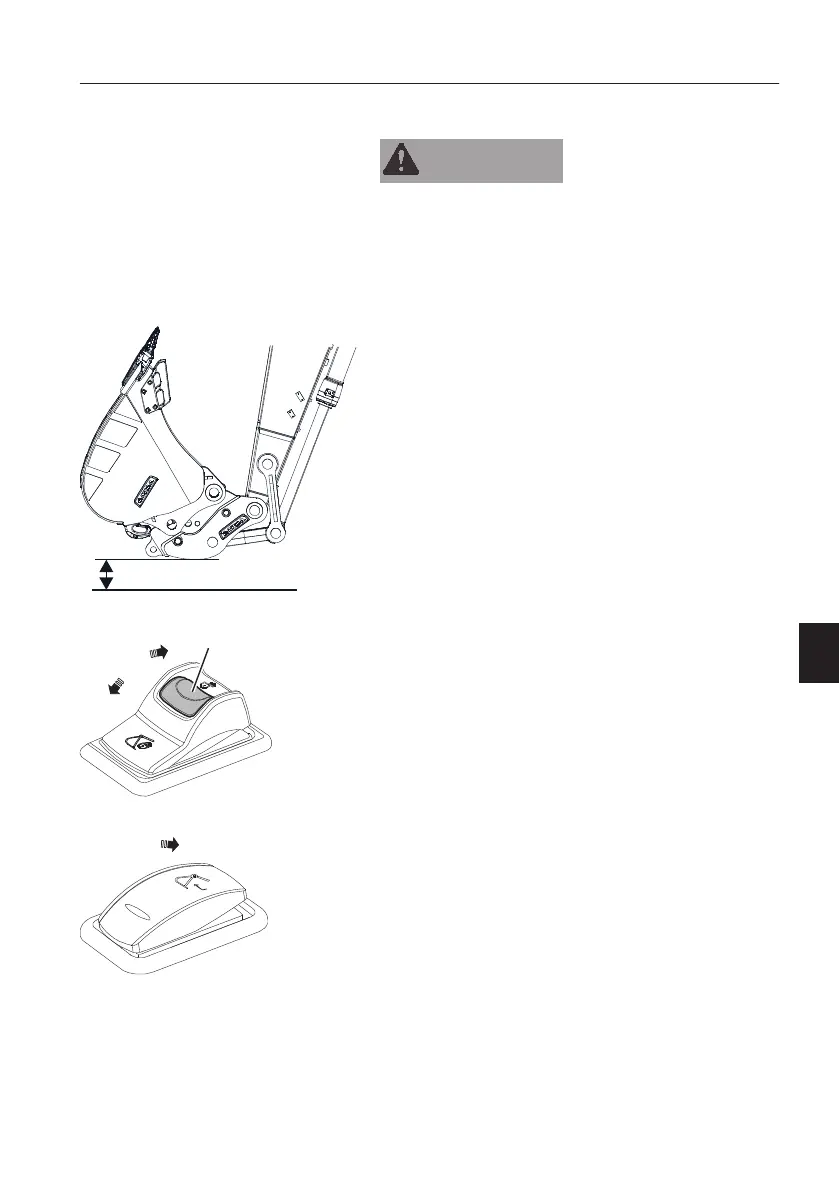

Bucket, removing
WARNING
Risk of crushing!
Attachments that move unexpectedly can cause
injuries.
Make sure people stay out of the working area when
connecting or disconnecting attachments.
1 Park the machine on firm and level ground.
2 Curl in the bucket completely towards the dipper
arm (to release the lock mechanism).
3 Press down to release the red lock device (A) on
the right-hand attachment quick coupler switch
and then press the switch to position (1) to
initiate the attachment quick coupler.
When the attachment quick coupler is initiated,
the buzzer sounds and the check message and
indicator are displayed in the IC (Instrument
Cluster). See page
79
for more information.
4 Press the left-hand attachment quick coupler
switch for more than 0.7 seconds to open the
attachment quick coupler. The switch is returned
automatically. See page
36
for more information.
D = 200 mm (7.87 inches)
Attachment quick coupler switch, right
Attachment quick coupler switch, left
Operating techniques
Attachments, connecting and disconnecting
235
