Installing tooth
1 Clean the front part of the tooth adapter and the
hole for the locking device.
2 Install the tooth so that the guide lugs fit in the
tooth adapter recesses.
3 Replace lock retainer (B) with a new part.
4 Install the locking device so that the chamfered
part points downward and the lock retainer
points forward.
5 Knock down the locking device with a hammer
until it is level with the upper part of the tooth
adapter.
6 Knock down the locking device further with a
hammer and the tool or other suitable drift until
the upper part is just below the scored line in the
hole.
NOTE!
Replace the steel pin in connection with
replacement of tooth adapter.
Bucket teeth, replacing
For Volvo tooth system II (VTS)
A special tool may be ordered to facilitate
replacement of teeth. The tool is available in
different sizes depending on tooth size. Contact
your dealer for more information.
WARNING
Risk of crushing by falling attachments.
Hydraulic or mechanical failure may cause the
attachments to fall, resulting in severe personal
injury or death.
Always support any attachment before adjusting or
servicing it.
Removing tooth
1 Lower the bucket to the ground and angle it
slightly upward.

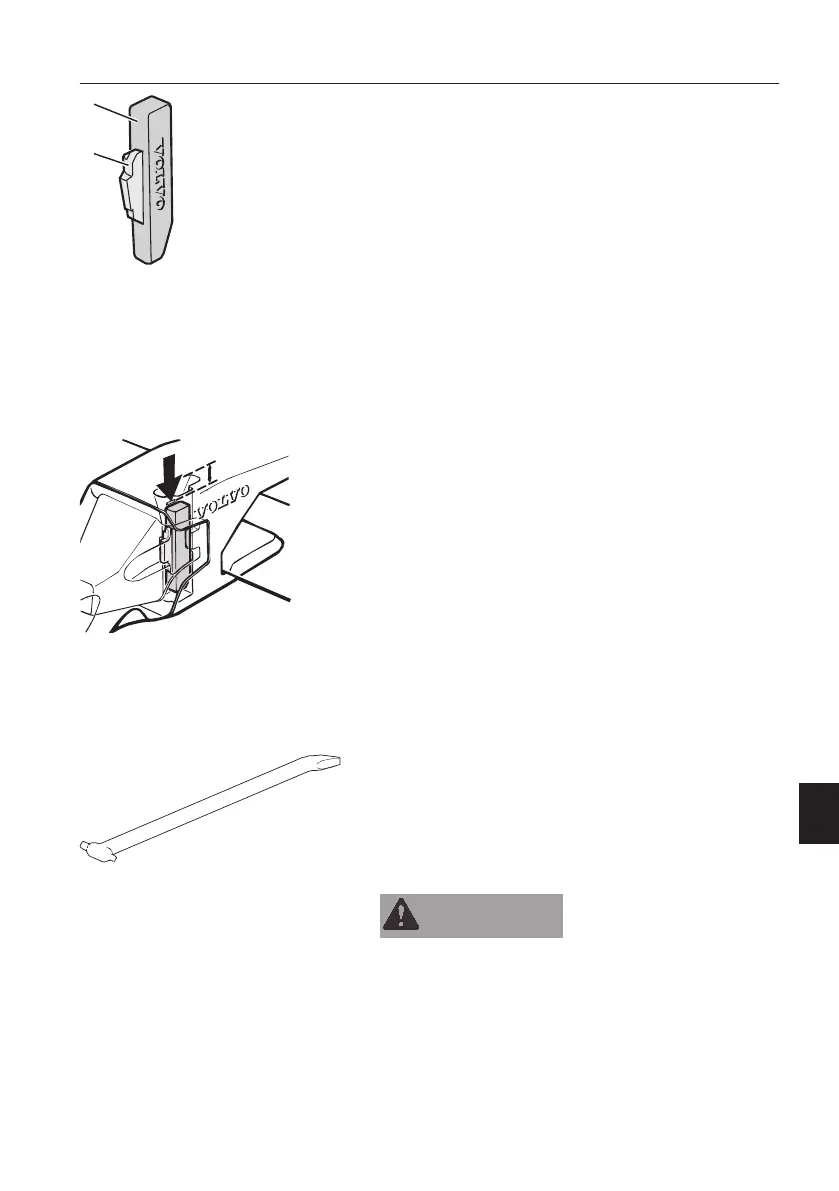

Locking device
A Steel pin
B Lock retainer
The locking device should be just below
the scored line
Special tool
Maintenance
Maintenance service, when required
343
