Volvo EC140E - Optional pedal (X1)

Right turn
1 When the sprockets are at the rear side of the
machine
Push the left lever (C) forward, the L/H track
rotates forward and the machine travels forward
as it turns to the right.
Pull the right lever (D) backward, the R/H track
rotates in reverse and the machine travels
backward as it turns to the right.
2 When the sprocket is at the front side of the
machine Operate levers (C or D) in the opposite
direction as to above.

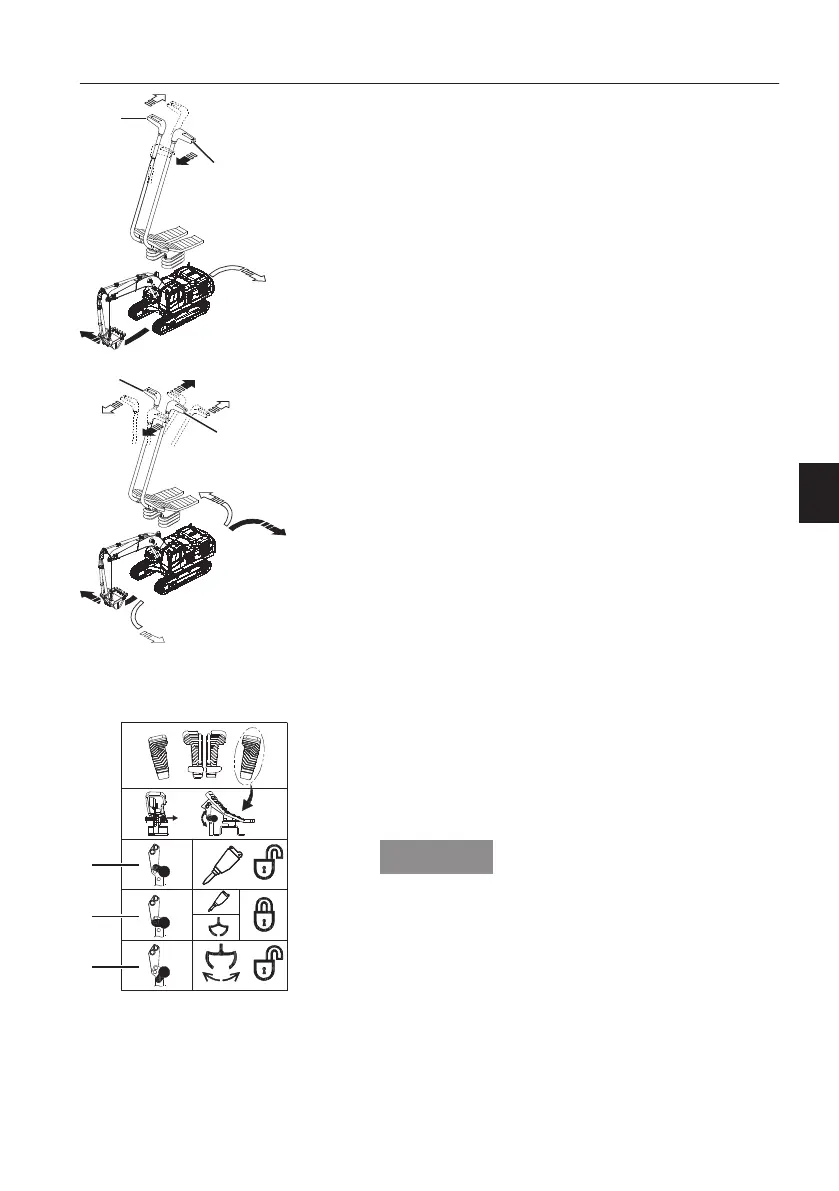

Spin turn
1 When the sprockets are at the rear side of the
machine
Pull the left lever (C) backward, the L/H track
rotates in reverse; simultaneously push right
lever (D) forward, the R/H track rotates forward
and the machine turns on the spot quickly to the
left.
Pull the right lever (D) backward, the R/H track
rotates in reverse; simultaneously push left lever
(C) forward, the L/H track rotates forward and
the machine turns on the spot quickly to the right.
2 When the sprocket is at the front side of the
machine
Operate levers (C or D) in the opposite direction
as to above.
5 Optional pedal (X1)
Position 1: Operating hammer
Position 2: Lock the pedal
Position 3: Operating shear or crusher
NOTICE
Make sure that the pedal is in locked position when
it is not used in order to prevent unwanted
manoeuvres.
V1067102
C
D
V1067103
D
C
V1170331
1
2
3
Other controls
Controls 101
