1 Load hooking device on bucket or
attachment quick coupler
The lifting device whether mounted on a bucket or
other attachment must not be subjected to lateral
loads. The load must be applied longitudinally to the
hook.
Always ensure that the load lies within the marked
permissible lifting load of lifting device when
manoeuvring the dipper arm and bucket.
Exceeding these limits can cause serious injury.
Remember that the operator is responsible in case
of an accident.
NOTE!
Lifting capacity of hook on the bucket or attachment
quick coupler could be lower than the machine's
lifting capacity.
Visually check that the max. lifting capacity of hook
marked on the bucket or attachment quick coupler.
If the marking for lifting capacity on the bucket or
attachment quick coupler is worn out, contact an
authorized Volvo dealer for the information.
NOTE!
This represents the capacity of the hook and not the
rated load capacity of the machine which varies
according to ground conditions, reach, travel
position and so on.
NOTE!
Only use lifting device recommended by Volvo in
order to avoid damage to the machine. Contact your
dealer for information regarding other lifting device.
WARNING
Risk of crushing.
A lifting hook loaded outside the permissible
working range could cause the load to fall off and
lead to serious crushing injury or death.
Never load the lifting hook outside the permissible
working range.
NOTE!
Bear in mind that the lifting capacity of the machine
is greater when the attachment is pulled in closer to
the machine.

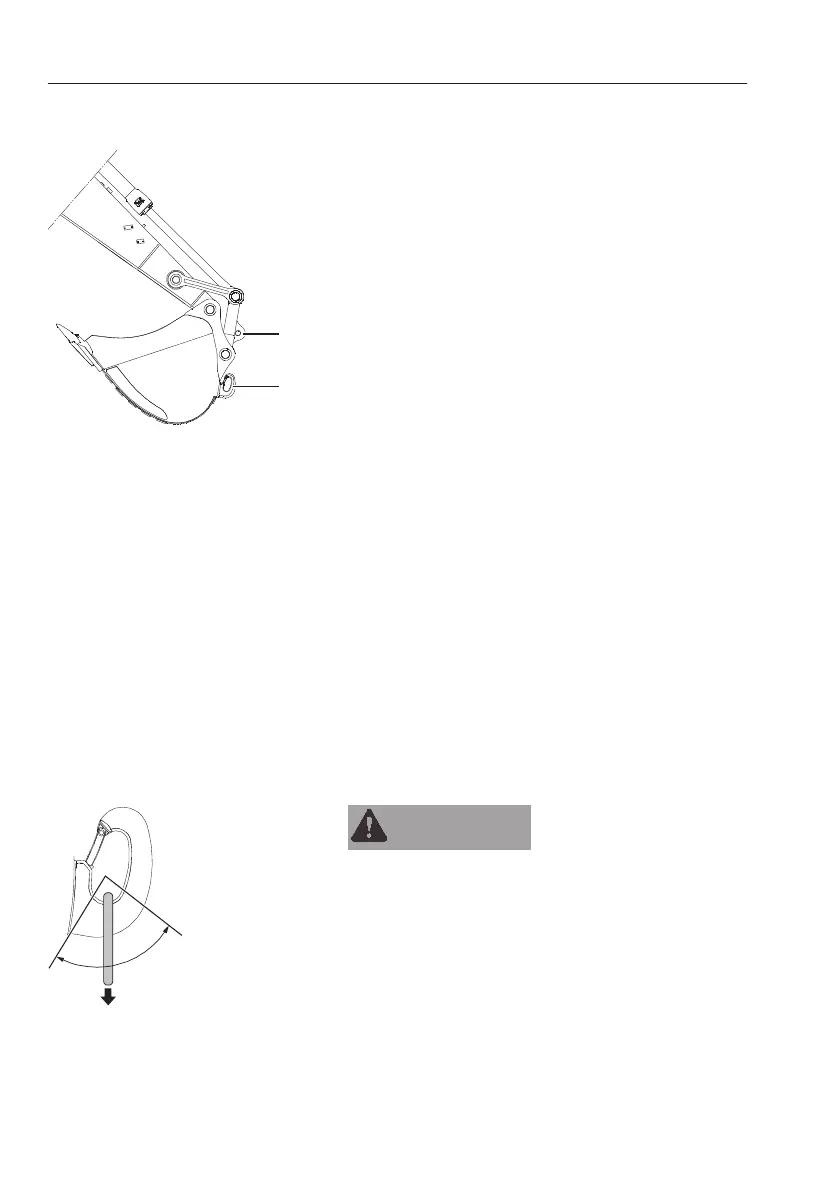

1 Lifting device on bucket
2 Lifting device on connecting rod
Permissible working range of lifting hook
262
Operating techniques
Lifting objects
