Volvo EC140E - Instrument panel, front

Instrument panel, front
The front instrument panel can be adjusted for
better operator comfort.
NOTE!
Prevent machine damage by taking correct action.
Read thoroughly and understand the instructions in
this section to familiarize yourself with the front
instrument panel before trying to operate the
machine.
NOTE!
The front instrument panel is designed to display
one of the supported languages. Refer to page
44
for details on how to set the language and the units.
V1134960

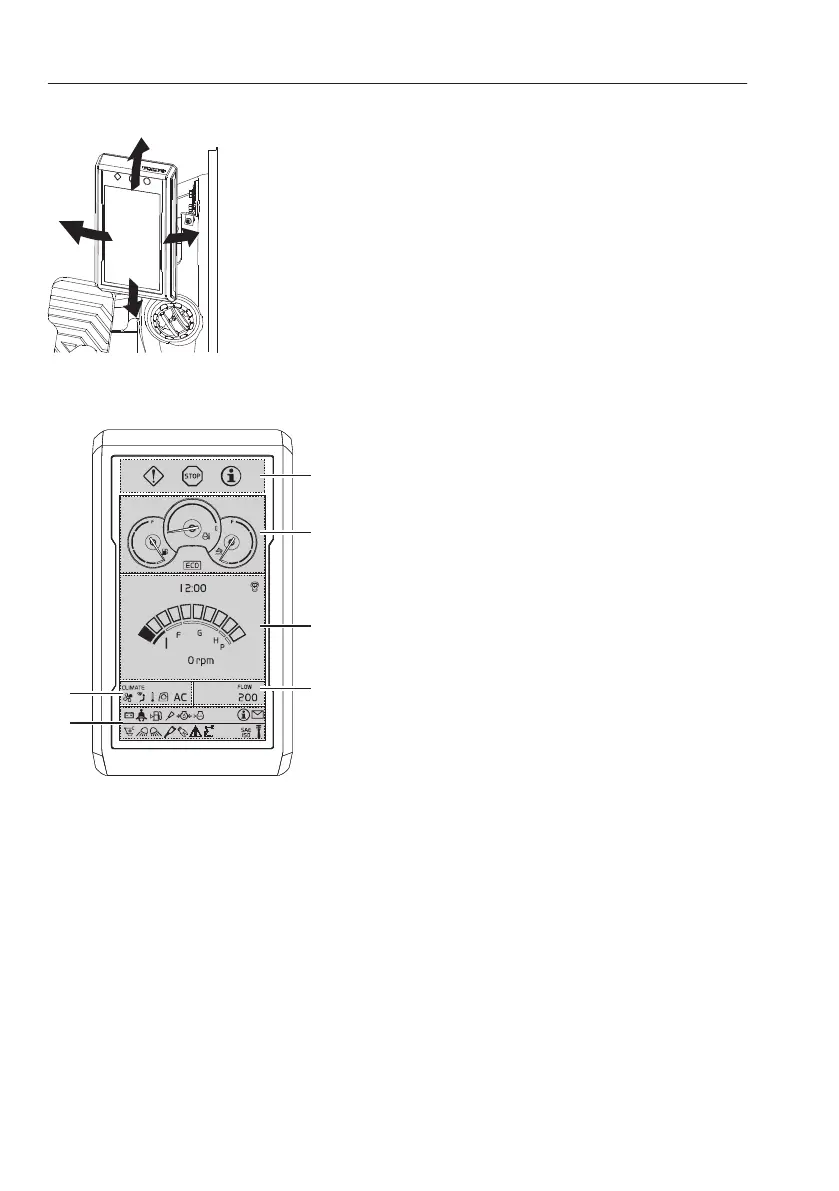

Adjustable direction of IC (Instrument
Cluster)
V1134967
1
2
3
5
6
4
l
1 Central warning light screen
2 Gauge screen
3 Time and engine speed screen
4 Hydraulic flow screen
5 CCM (Climate Control Module)
screen
6 Indicator screen
38
Instrument panels
Instrument panel, front
