Satellite antenna, folding (optional
equipment)
When transporting the machine or using the
machine in an area limited the height, the satellite
antenna can be damaged.
Fold satellite antenna (A) using spring (B) like the
figure. In this case, it may be limited for satellite
communication of the machine.
Halogen beacon lamp, folding (optional
equipment)
When transporting the machine, fold bracket (B)
with rotating beacon lamp (A) not to be damaged.
1 Loosen screw (C) and then turn down rotating
beacon lamp (A).
2 Fasten the screw (C).
LED rotating beacon, disassembling
(optional equipment)
When transporting the machine, disassemble
rotating beacon (A) not to be damaged.
1 Loosen wing screw (B) and disassemble rotating
beacon (A).
2 Keep rotating beacon (A) in the cab during
transportation.
3 Put rubber cover (D) on bracket (C).
NOTE!
If you remove the rotating beacon, be sure to put
the rubber protection on the fixing tube. This will
avoid rust and other possible damages.
B
A
BA
V1099532

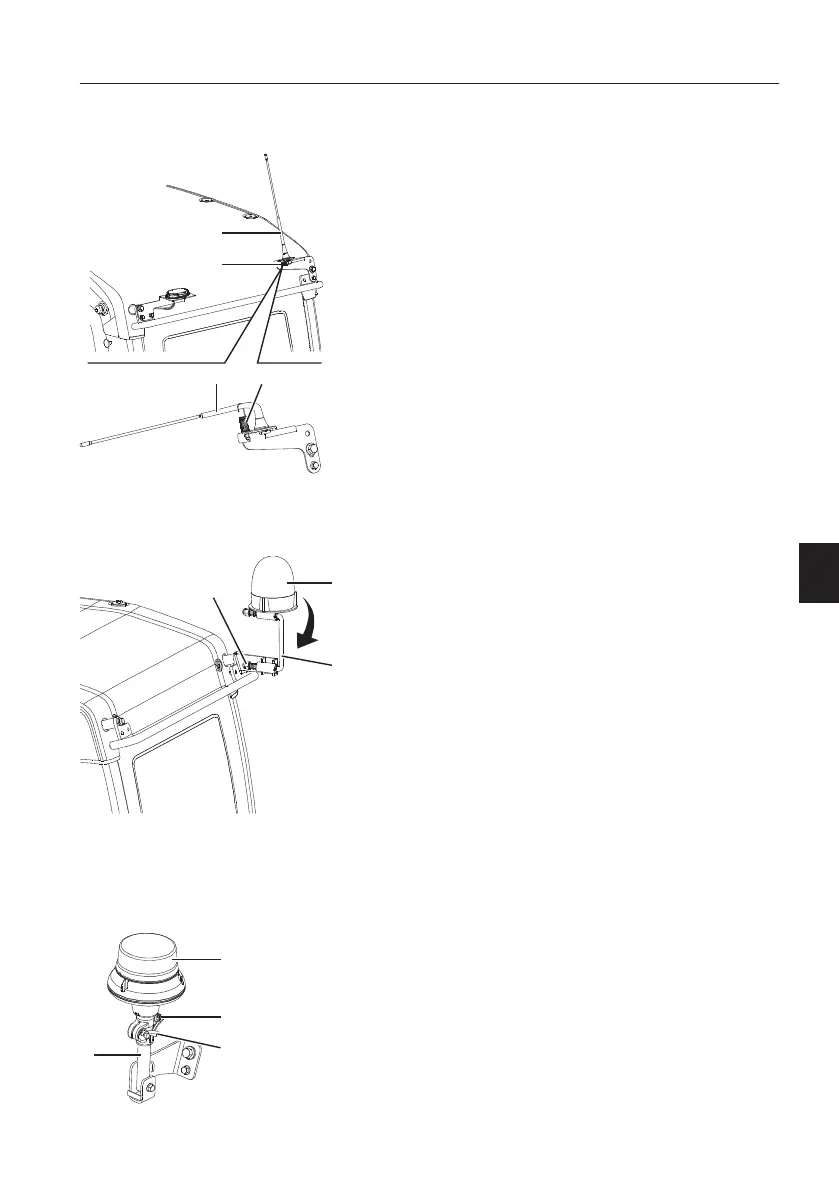

A Satellite antenna
B Spring
V1099574
A
B
C
V1152462
A
B
C
D
