Volvo EC140E - Swing drive unit, checking oil level

Swing drive unit, checking oil level
Check the oil level every 250 hours.
1 Pull out oil dipstick (A) and wipe it with a clean
cloth.
2 Insert oil dipstick and pull it out again.
3 Check the oil level. If the level is in the center of
"D", the level is correct.
4 If the level is low, top up oil through oil filler hole
(B) to correct level.
5 If the level is high,
- Open the drain valve (E).
- Remove the under cover (C).
- Place a suitable sized container under the
protection cap (G).
- Open the protection cap (G).
- Attach the drain hose (F) and drain the oil to the
correct level.
- Disconnect the drain hose.
- Close the protecting cap.
- Close the drain valve.
For oil specification, see page 351 .

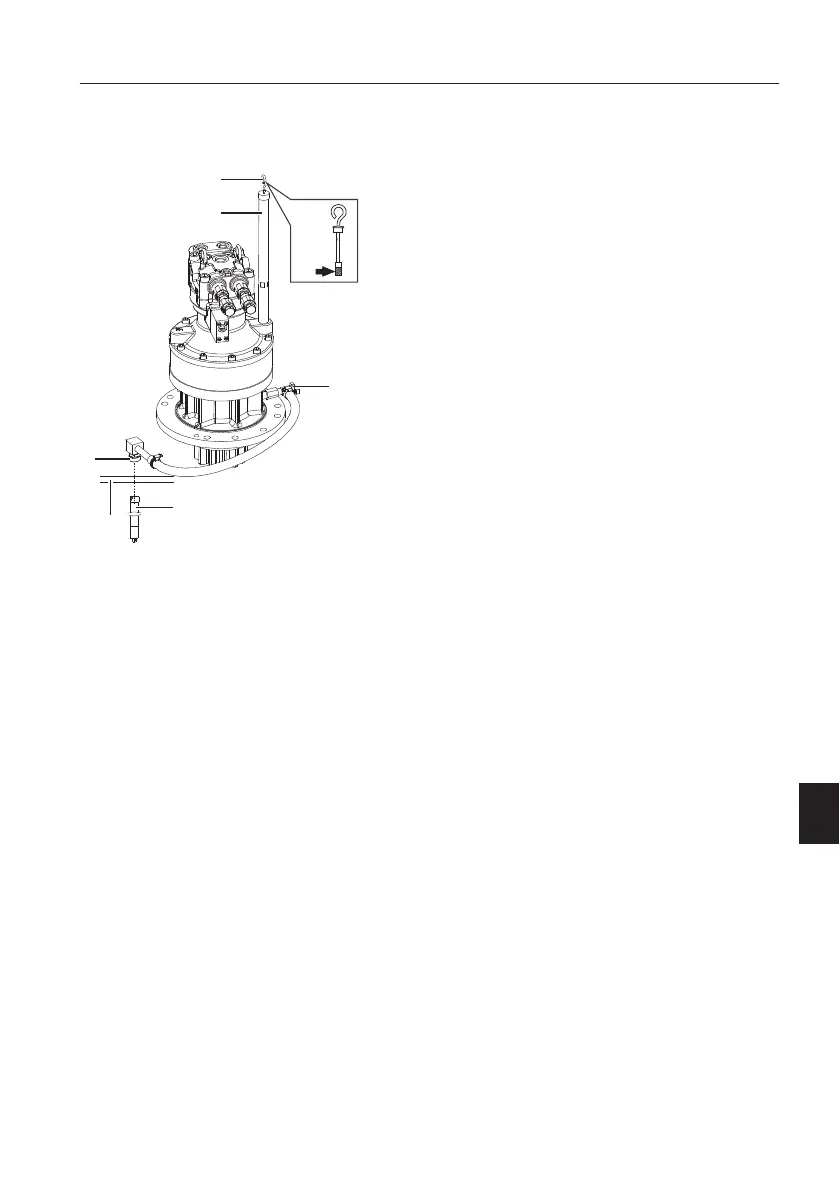

V1149057
