Volvo EC140E - Working ranges

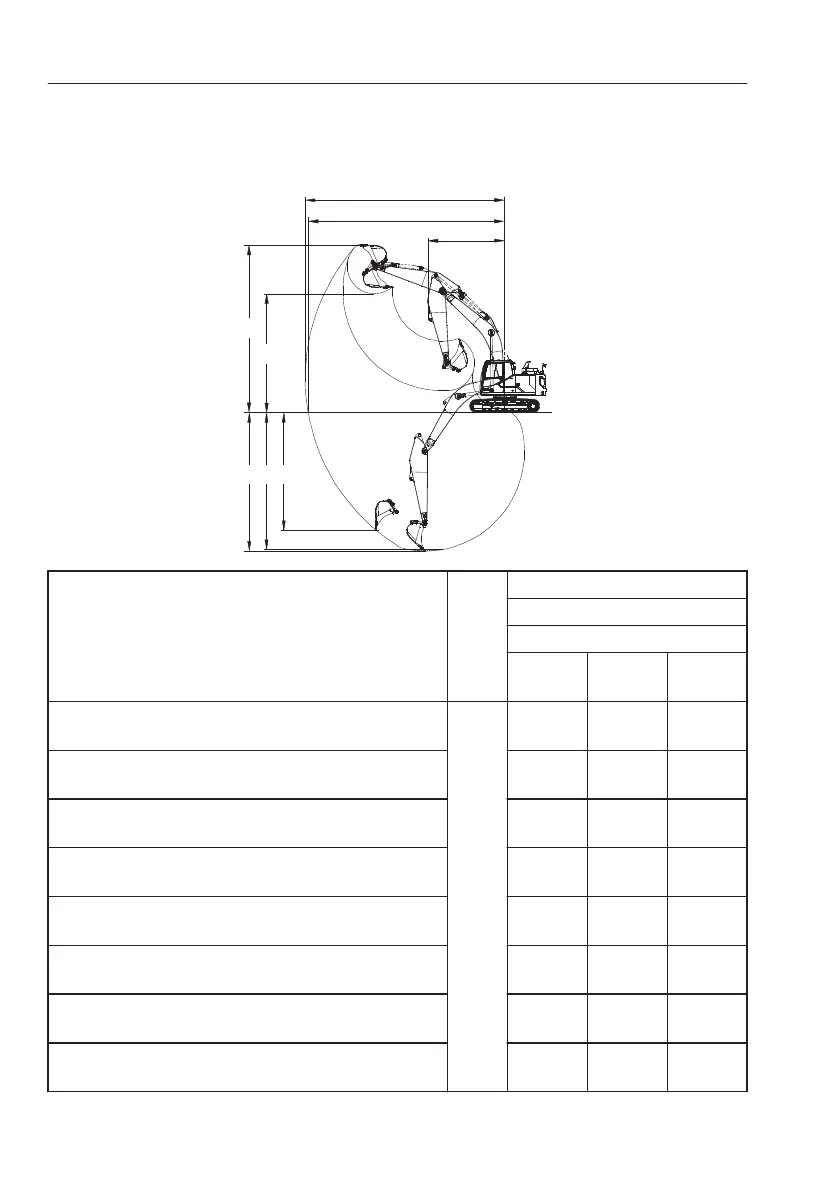

Working ranges
EC140E L with mono-boom
V1149076
G
E
D
H FC
B
A
Description Unit
Boom
4.6 m (15' 1")
Dipper arm
2.1 m
(6' 11")
2.5 m
(8' 2")
3.0 m
(9' 10")
A. Maximum digging reach
mm
ft in
7980
26' 2"
8360
27' 5"
8850
29' 0"
B. Maximum digging reach on ground
7840
25' 9"
8220
27' 0"
8720
28' 7"
C. Maximum digging depth
5160
16' 11"
5560
18' 3"
6060
19' 11"
D. Maximum cutting height
8120
26' 8"
8360
27' 5"
8710
28' 7"
E. Maximum dumping height
5720
18' 9"
5950
19' 6"
6290
20' 8"
F. Maximum vertical wall digging depth
3970
13' 0"
4330
14' 2"
4870
16' 0"
G. Minimum front swing radius
2570
8' 5"
2630
8' 8"
2740
9' 0"
H. Maximum digging depth
(level the ground of 2.44 m (8'))
4900
16' 1"
5340
17' 6"
5880
19' 3"
- Machine with direct fit bucket
390
Specifications
Working ranges
