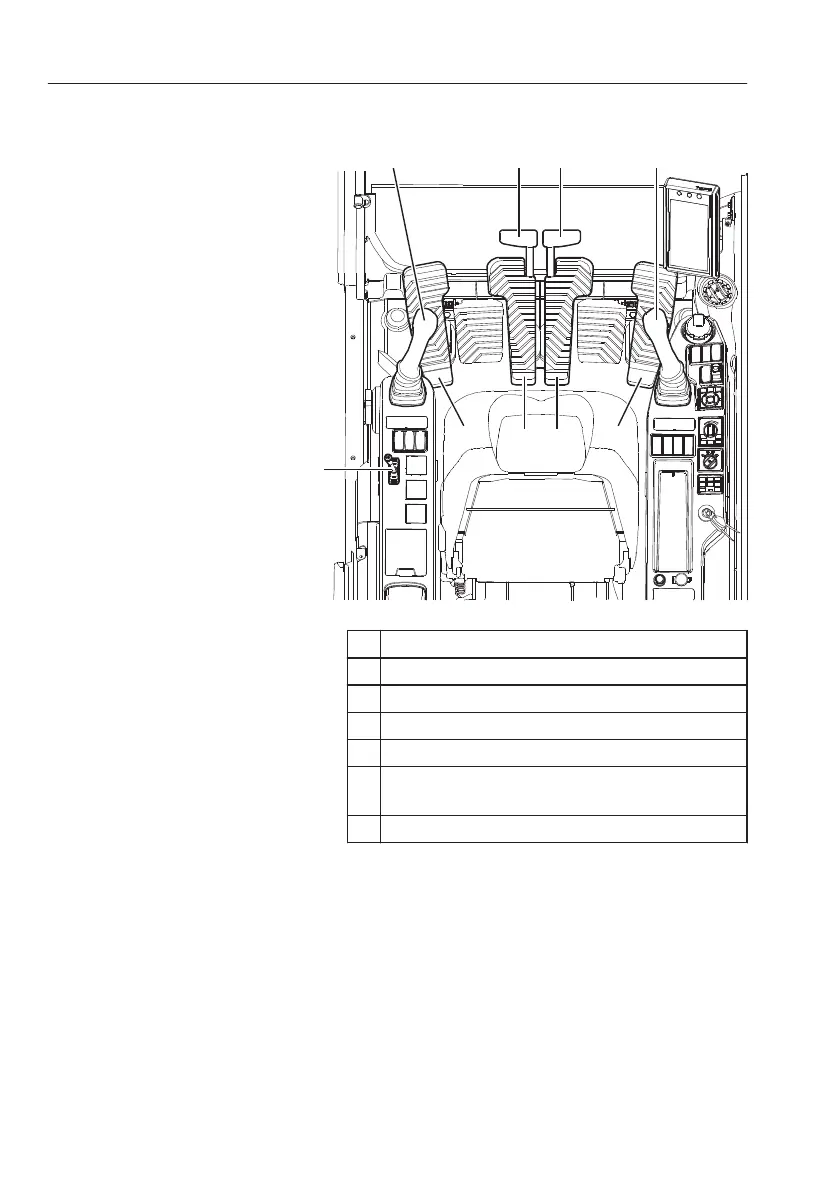

Other controls
1 Left control lever
2 Right control lever
3 Travel levers
4 Travel pedals
5 Optional pedal (X1)
6 Optional pedal (Straight travel)
Optional pedal (Variable adjustable boom)
7 Dozer blade lever
The control levers of this machine is set from factory
to operate in ISO/SAE standard operating pattern
for optimum machine performance.
Some machines may have the optional pattern
change valve. Refer to page
95
for more details.
On machines equipped with the optional pattern
change valve, the indicator of chosen pattern will be
shown on the IC (Instrument Cluster).
94
Other controls
