Volvo EC140E - Buckets; Bucket, changing

Buckets
Bucket, changing

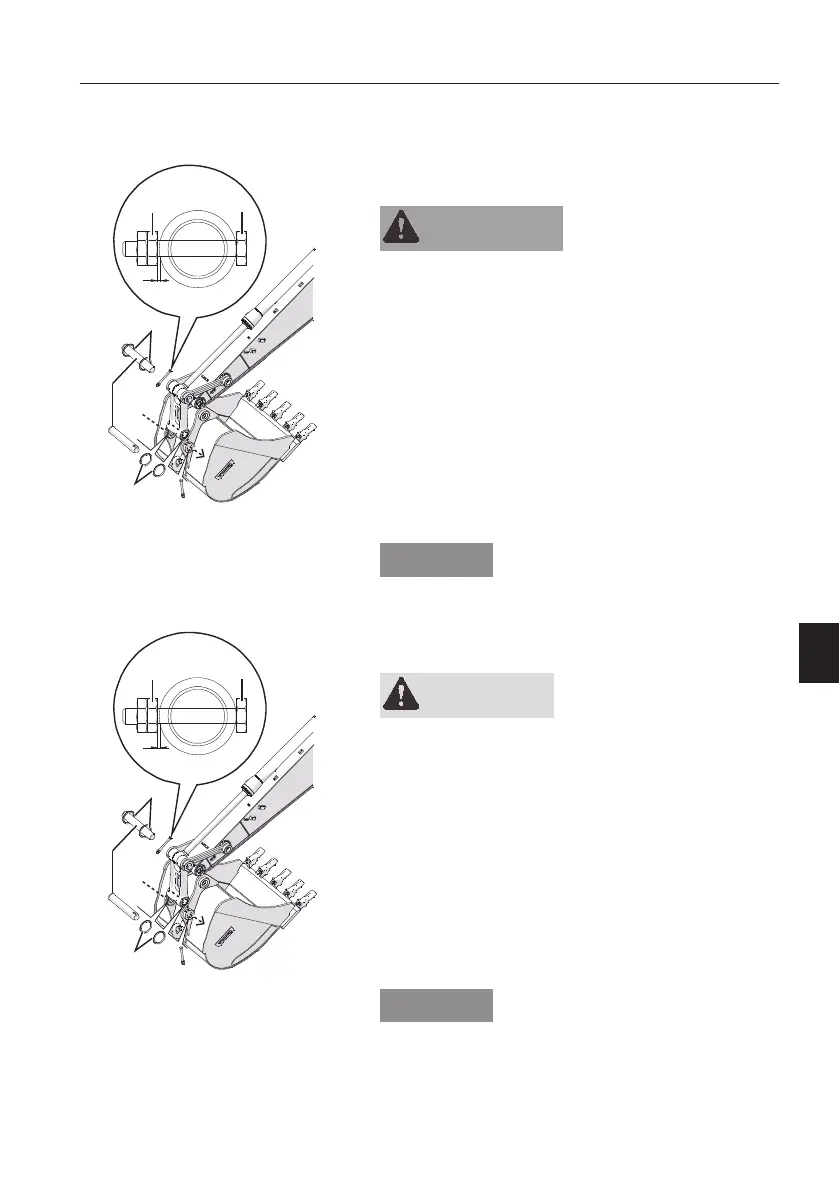

Bucket, removal
WARNING
Risk of splinter injury.
Striking the bucket pin with a hammer could cause
metal chips to fly around and cause serious splinter
injury.
Always wear face and eye protection, hard hat and
gloves while removing and installing the bucket
pins.
1 Lower the bucket lightly on the ground.
2 Remove the lock screw (A) and nut (B) of each
pins.
3 Remove pins (C and D) and O-rings (E), then
remove the bucket.
NOTICE
Block the removed bucket to stabilise it. Keep the
pins clean and do not damage the O-ring.
Bucket, Installation
CAUTION
Risk of cutting and crushing.
Loose parts could cause crushing and cutting injury.
Never use your fingers for checking alignment
between loose parts. Always use a tool.
1 Align the dipper arm and links to the bucket.
2 Put O-rings (E) at the holes for the dipper arm
and link. Align the holes between bucket and
dipper arm and links.
3 Apply grease to the holes.
4 Insert pins (C and D).
5 Install lock screw (A) and nut (B) of each pins.
NOTICE
Make sure that there is a clearance of at least 2 mm
(0.08 in) between nut and pin boss. Lubricate the
pin.
V1214836
B A
2mm
C
E
E
D
V1214836
B A
2mm
C
E
E
D
Operating techniques
Buckets 247
