Mechanical suspension seat

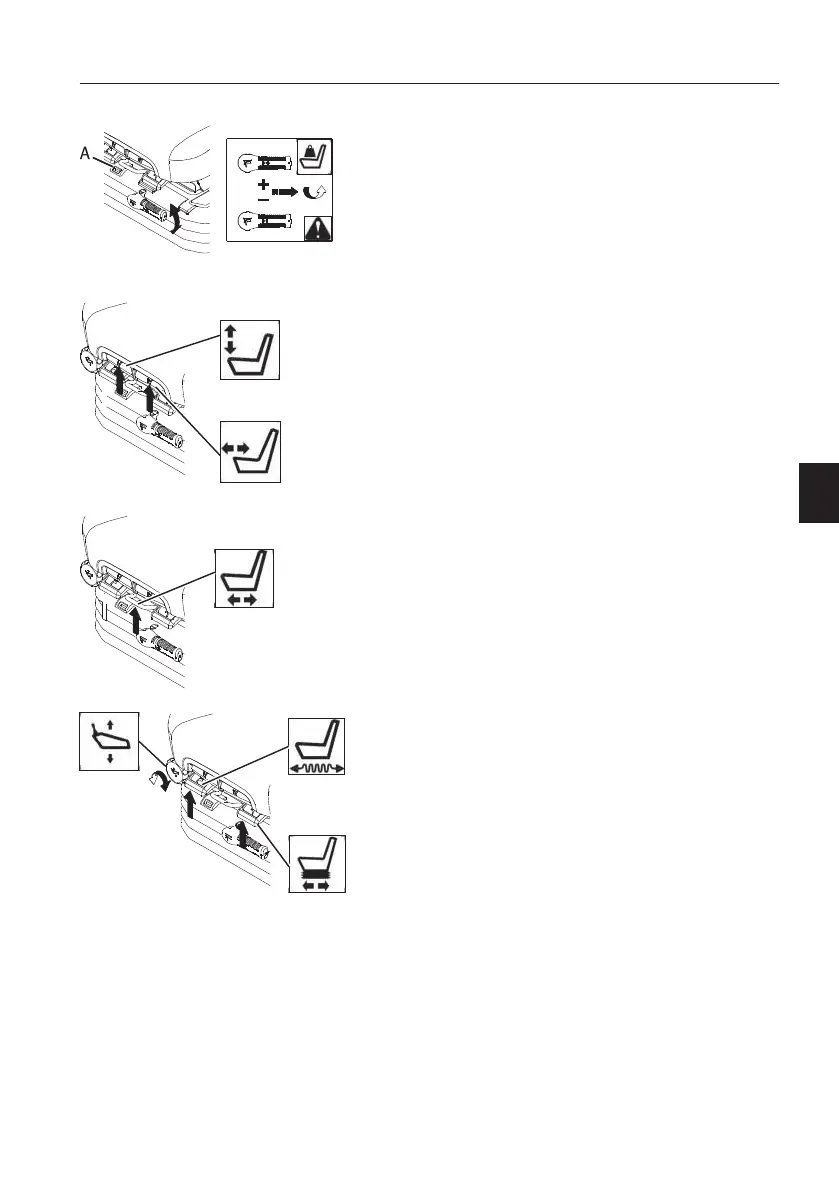

1 Weight adjustment
Adjust the seat to the drivers weight by turning the
weight adjusting handle. The set weight should be
within the green zone of the ride indicator.
2 Fore & aft adjustment, seat cushion
Lift the lever (2) and adjust the seat cushion fore &
aft.
3 Angle adjustment, seat cushion
Lift the lever (3) and adjust the angle of the seat
cushion. It may be necessary to reduce occupant
pressure on the seat cushion when performing this
adjustment.
4 Horizontal adjustment, top seat
It is possible to move the seat forwards and
backwards relative to the control consoles. Lift the
handle (4) and move the seat so that the consoles
are in the desired position relative to the seat. The
locking lever must latch in the desired position. It
should not be possible to move the seat into another
position when it is locked.
5 Horizontal adjustment, top seat and consoles
The seat and the consoles can be adjusted
forwards and backwards. Lift the lever (5) and move
the seat and consoles to the desired position.
The locking lever must latch in the desired position.
It should not be possible to move the seat into
another position when it is locked.
6 X-Isolator adjustment (optional equipment)
It is possible to adjust the seat to provide fore and
aft isolation. It can be used to reduce fore and aft
shocks of the seat. Lift the lever (6) to activate the
isolator, push down to deactivate this adjustment.
7 Height adjustment, consoles
Rotate the handle (7) and adjust the height of the
control consoles.
A Ride indicator
