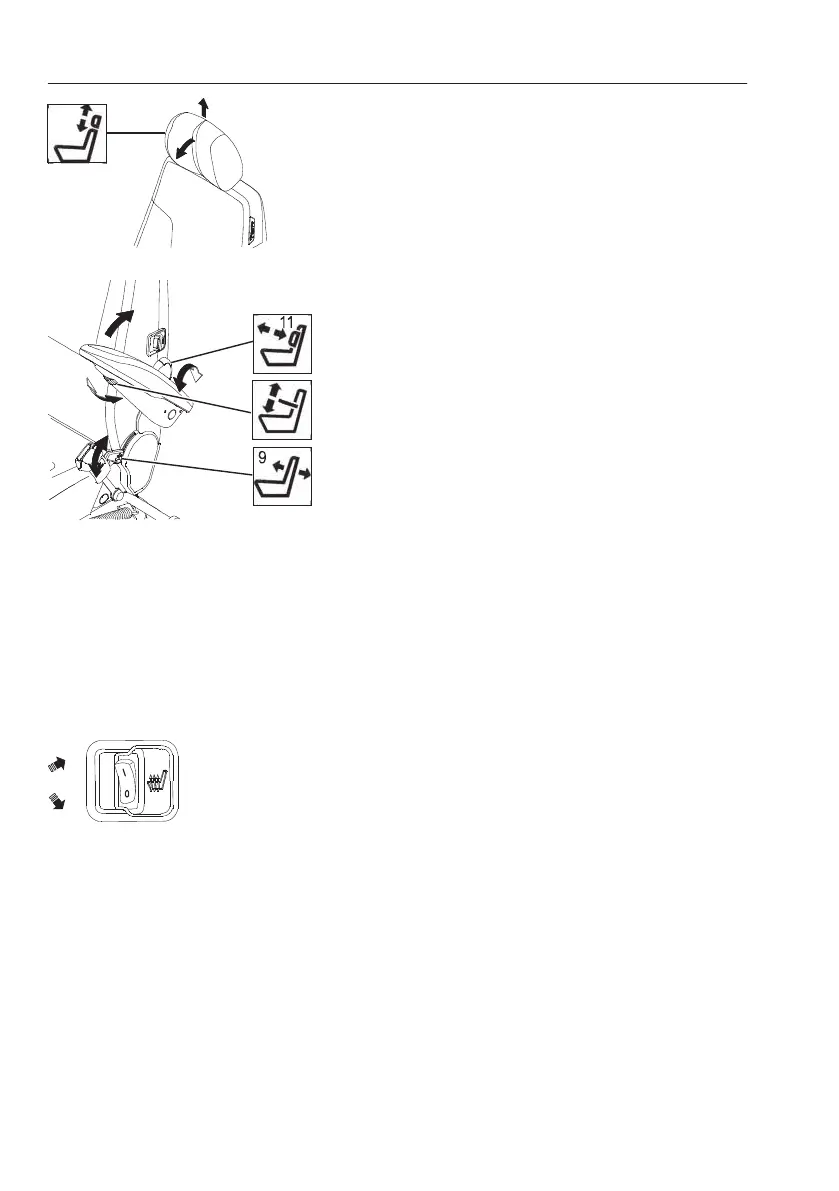

8 Headrest adjustment
The headrest can be adjusted for height by pulling
up or down. End stops limit the movement. It can be
also adjusted for angle by pushing forwards or
backwards. End stops limit the movement.
9 Backrest angle adjustment
Pulling up the control handle (9) releases the
backrest latch. The back of the seat can then be
reclined backwards or forwards to the desired
position. Releasing the handle allows the backrest
to move to a latching position.
The locking lever must latch in the desired position.
It should not be possible to move the backrest into
another position when it is locked.
10 Armrest adjustment
Inclination of the armrest can be changed by turning
the adjustment knob (10) mounted on the underside
of the armrest. The armrests can be manually
tipped up if required.
11 Lumbar support adjustment
Rotate the knob (11) in the direction of the arrow to
increase the amount of lumbar support (five
positions). Further rotation in the same direction
causes the lumbar support to return to minimum.
12 Seat heating switch (optional equipment)
This is used to warm up the operator seat.
The seat heating will activate when this switch is in
position (1) and the temperature is under 26 °C (79
°F). The seat heating stops when the temperature
is up to 36 °C ( 97 °F), and will activate again when
the temperature turns down under 26 °C (79 °F)
again.
0 Seat heating, OFF
1 Seat heating, ON
