Symbol key

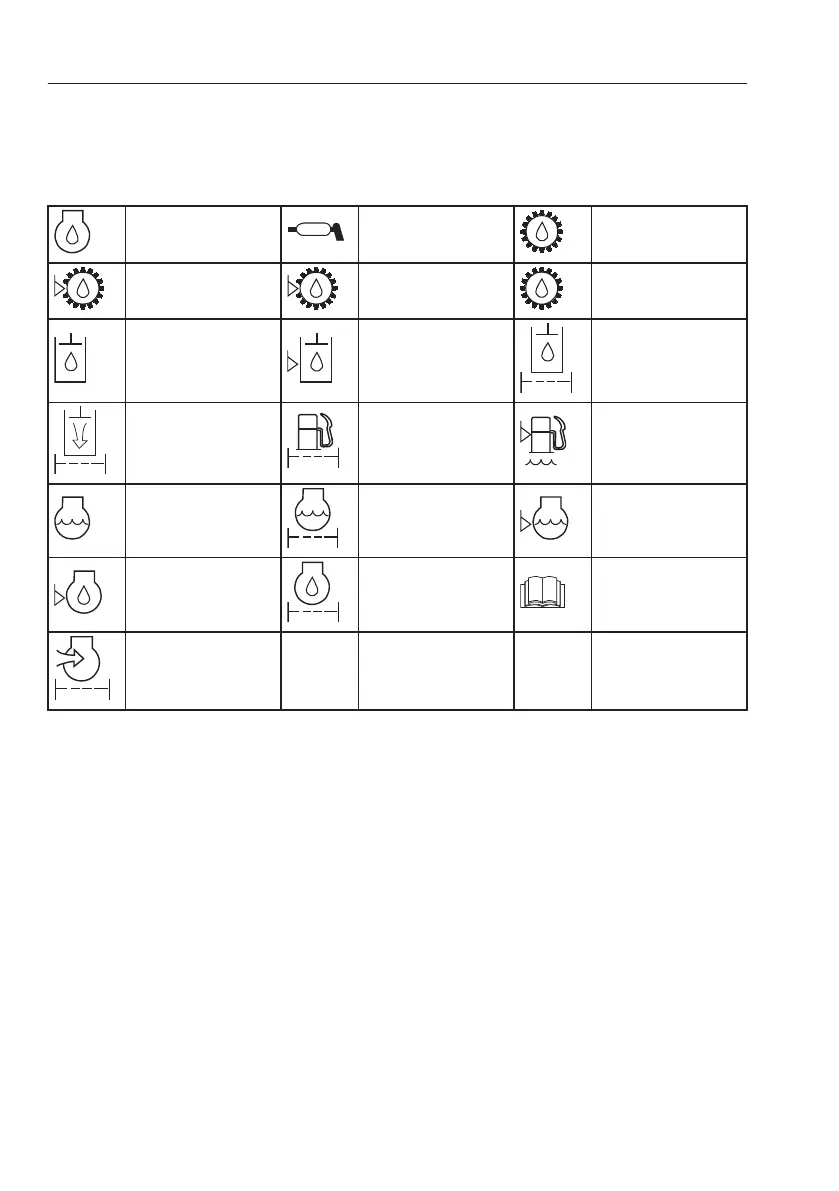

These standard symbols are used in the Lubrication
and service chart, see the adjacent table.
Engine oil Grease lubrication
S
Swing drive gear
oil change
S
Swing drive gear
oil check
T
Travel gear oil
check
T
Travel gear oil
change
Hydraulic oil Hydraulic oil level Hydraulic oil filter
Hydraulic tank, air
breather filter
Fuel filter Water separator
Engine, coolant
Engine, coolant
filter
Engine coolant
level
Engine oil level Engine oil filter Operator manual
Air cleaner filter
290
Maintenance
Lubrication and service chart
