Battery disconnect switch
NOTICE
Do not turn off the battery disconnect switch when
the engine is running. The electrical system may be
damaged.
Battery disconnect switch (C) is located inside the
left side door of the machine. When welding,
servicing of electrical system or after finishing work
of the day for safety, the battery disconnect switch
should be turned off.
NOTE!
Make sure that the indicator light goes out after
turning off the battery disconnect switch. This may
take a couple of minutes depending on the system
status at the time.
Electrical distribution box
Relays and fuses are in the electrical distribution
box which is located on the rear side of cab.
NOTICE
Never install a fuse with a higher amperage than
what is stated on the decal. Risk of damage or fire
on the circuit board.
Relays and fuses are easily accessible after
discovering the cover of box. A decal which shows
the exact positions and specifications of respective
relays and fuses is provided on the outside of cover,
see page
370
.
NOTE!
If a fuse blows repeatedly in the same position, the
cause of the fault has to be investigated.

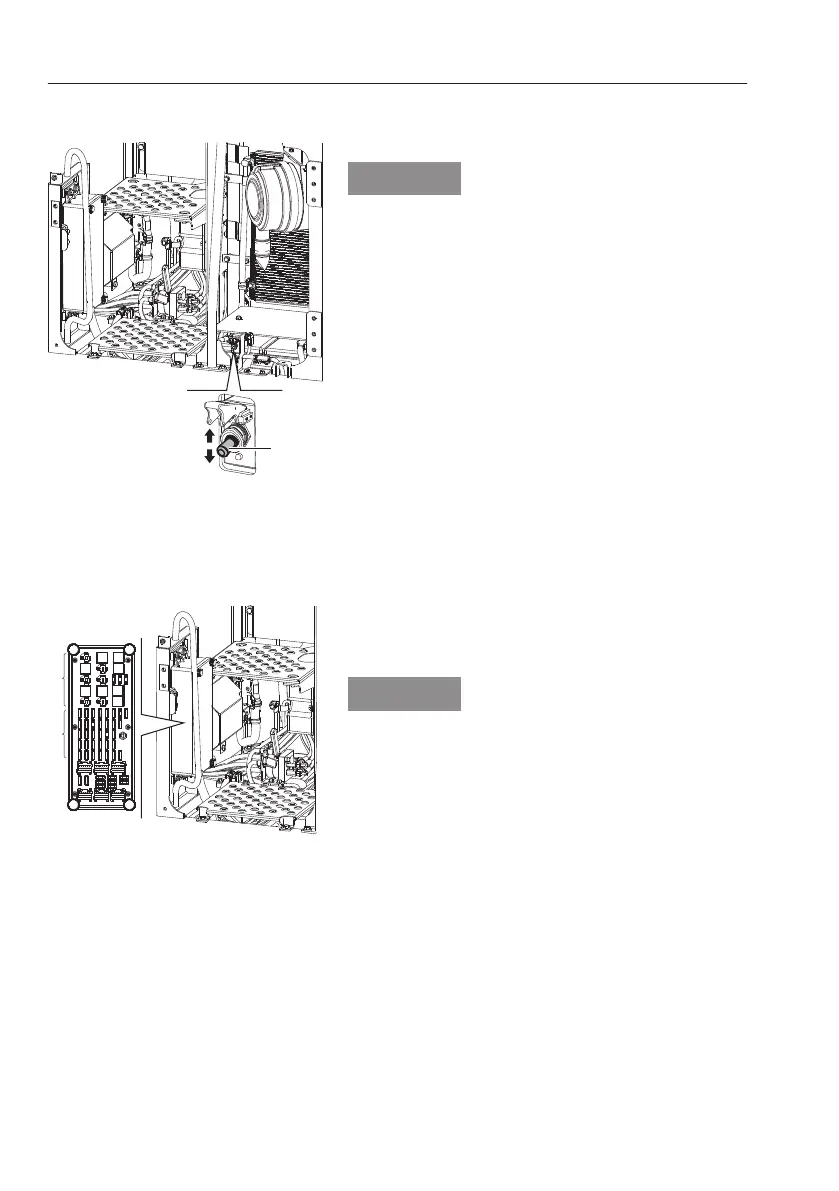

A ON position
B OFF position
C Battery disconnect switch
Electrical distribution box
A Relays
B Fuses
274
Safety when servicing
Before service, read
