Lifting machine
WARNING
Risk of personal injury.
Faulty or improper lifting equipment could cause the
machine to break away from the lifting vehicle,
causing accidents, serious injury or death.
Use certified cables, lifting straps, slings, shackles
and hooks with adequate load capacity and never
lift the machine with a person in or on the machine.
WARNING
Risk of crushing.
Falling load could cause serious injury.
Do not stand under a suspended load. Use
appropriate loading and lifting equipment.
NOTE!
Incorrect or faulty equipment or improper lifting
methods may cause accidents. Therefore, carefully
follow the instructions given below.
Lift the machine on flat, even and level ground.
1 Start the engine, and arrange the bucket, dipper
arm and boom as illustrated. Position the
superstructure boom forward over the idlers.
2 Move the control lockout lever down to lock the
system securely, see page
111
.
3 Stop the engine, check the safety around the
machine.
4 Close and lock the windshield, cab door and
engine hood securely.
5 As shown in the decal for lifting, connect lifting
cables or slings with sufficient strength for the
machine weight at the lifting points correctly.
6 After installation of all hoisting equipment, lift the
machine a little to check its balance, if
satisfactory, lift it slowly and evenly.
7 Maintain good visibility of the machine at all
times during the lift. And continuously check that
the machine is level.

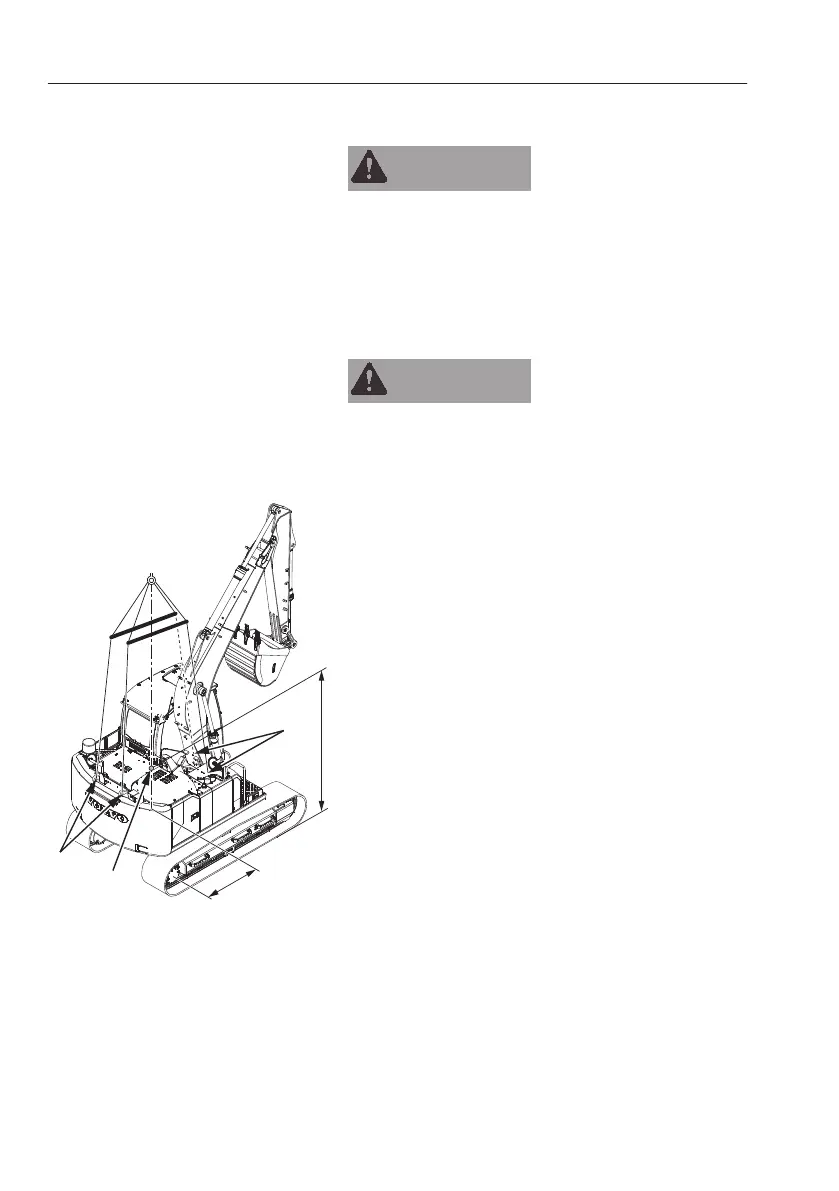

A 1232 mm (48.5 inches)
B 1444 mm (56.9 inches)
C Center mark for the center of
gravity
D Lifting points
206
Operating instructions
Transporting machine
