Subscreens
1
Engine
Oil pressure: This shows the measured value
of the engine oil pressure. When the bar graph
is green, the value is OK, within normal
operation range. When the bar graph is red, the
value is abnormal.
Oil level: This indicator shows the measured
value of the engine oil level. The following color
of the indicator only shows when the ignition
switch is on. If the engine is running, the
indicator shows no color.
- Green: The value is between 30%-100%, the
oil level is OK.
-
Yellow: The value is between 3%-30%, check
the oil level with the dipstick at next daily
maintenance.
-
Red: The value is between 0%-3%, the oil
level is too low. Check the oil level immediately
with the dipstick and take the necessary
actions.
-
Grey: System failure. Contact a workshop
authorized by Volvo.
Regeneration: The operator can perform a
regeneration with "Start" in the menu when the
Diesel Particulate Filter has collected enough
soot. When selecting "Stop" in the menu, the
regeneration which is in progress will be
cancelled. Refer to page
184
for more detailed
information.
- Stop
- Start
DPF soot level: This shows the level of soot that
has accumulated within the DPF.
NOTE!
Contact a workshop authorized by Volvo for
detailed information on the soot level.
DPF Regen progress: This shows the
measured value of DPF regeneration progress.
Regeneration is complete when the bar graph
reaches 100%.

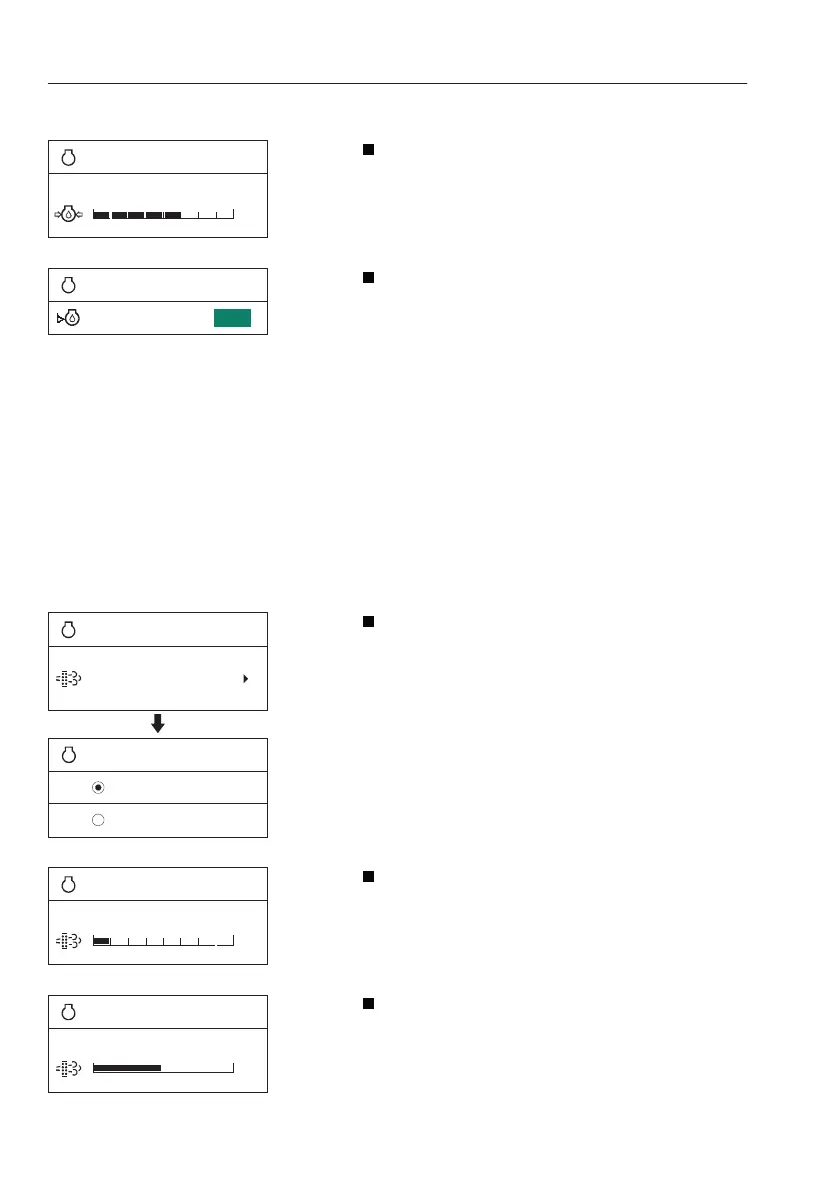

V1147256
Engine
Oil pressure
Lo
V1147258
Regeneration
Engine
Regeneration
Stop
Start
V1147259
Engine
DPF soot level
100% 130% 140%
V1147260
Engine
DPF Regen progress
0% 100%
46
Instrument panels
