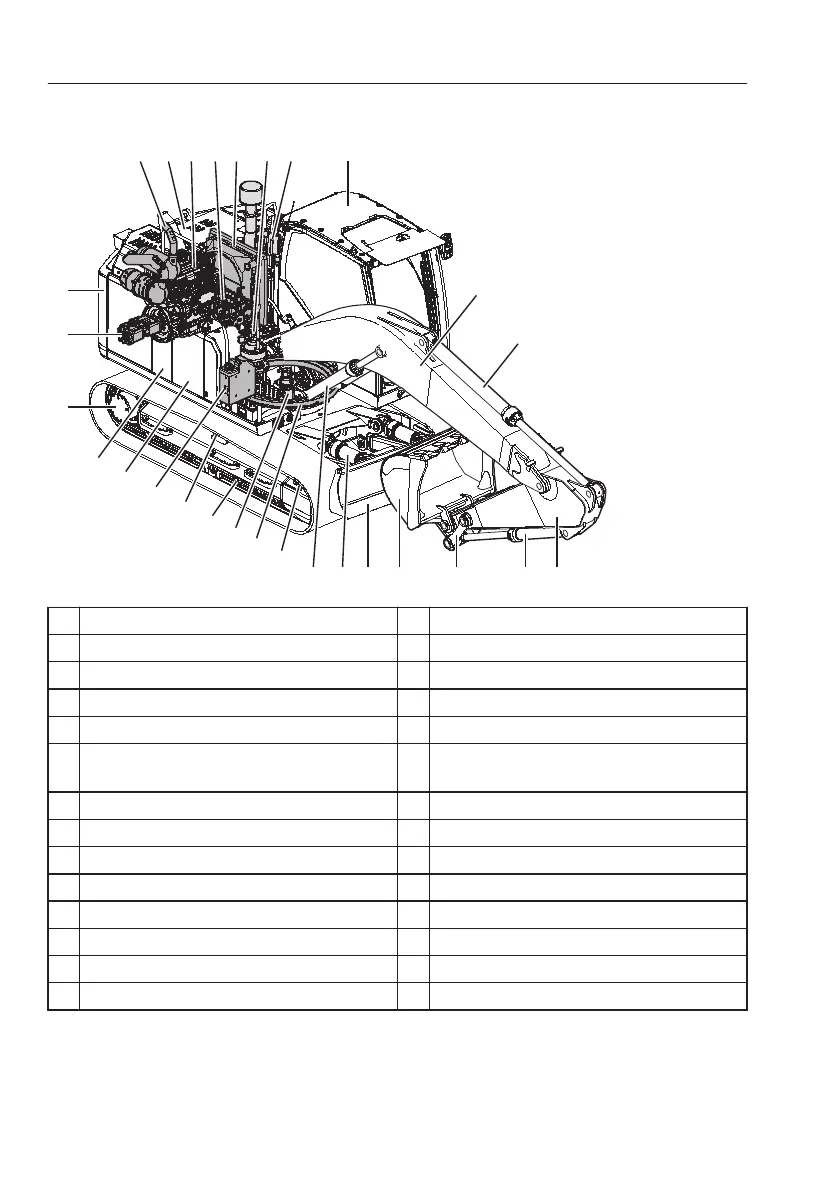

Volvo EC140E - Machine view

Machine view
V1149069
36 5 478910
12
11
22
21
20
13
14
15
17
16
18
19
1
2
24232728 25 26
1 Dipper arm cylinder 15 Fuel tank
2 Boom 16 AdBlue®/DEF tank
3 Operator cab 17 Top roller
4 Air cleaner 18 Bottom roller
5 Swing motor and gearbox 19 Idler
6 Charge air cooler, hydraulic oil cooler,
and radiator
20 Turning joint
7 Main control valve 21 Swing ring gear
8 Engine 22 Boom cylinder
9 Rear hood 23 Bucket
10 Muffler 24 Link
11 Counterweight 25 Bucket cylinder
12 Main pump 26 Dipper arm
13 Track motor and gearbox 27 Dozer blade
14 Hydraulic tank 28 Dozer blade cylinder
18
Presentation
Machine view
