Bucket teeth, replacing
Replace the bucket teeth before the adaptors wear
away.
WARNING
Risk of splinter injury.
When striking metal objects with a hammer, flying
metal chips could cause serious splinter injury to
eyes and other body parts.
Always wear personal protective equipment and
eye protection when replacing bucket teeth.
- Lower the bucket to the ground and position it to
the easiest posture for working.
- Stop the engine before replacing the bucket tooth.
For side pin locking system

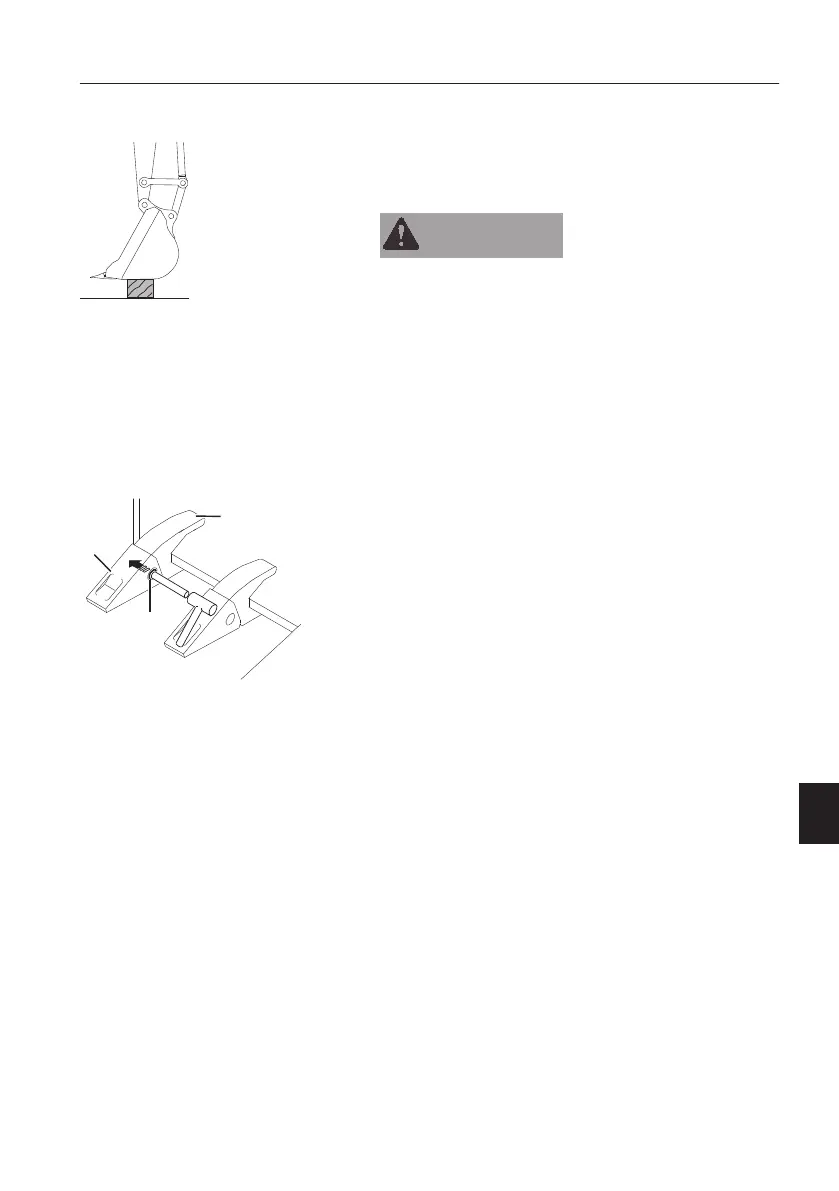

1 Lower the bucket horizontally and place it on a
block.
2 Stop the engine and move the control lockout
lever down to lock the system securely.
3 Drive out the pin (B) using a hammer and punch.
Be careful not to damage the locking washer (C).
Use a round bar with a smaller diameter than the
pin as a punch.
4 Clean the surface of adapter (D) and insert a
new locking washer (C) in the correct place, and
then install a new tooth (A).
5 Drive the pin (B) into the pin groove until the pin
is flush with the tooth.
Maintenance
Maintenance service, when required
341
