Volvo EC140E - Exhaust aftertreatment system, alarms requiring special actions

Result (white) / Function description (green)

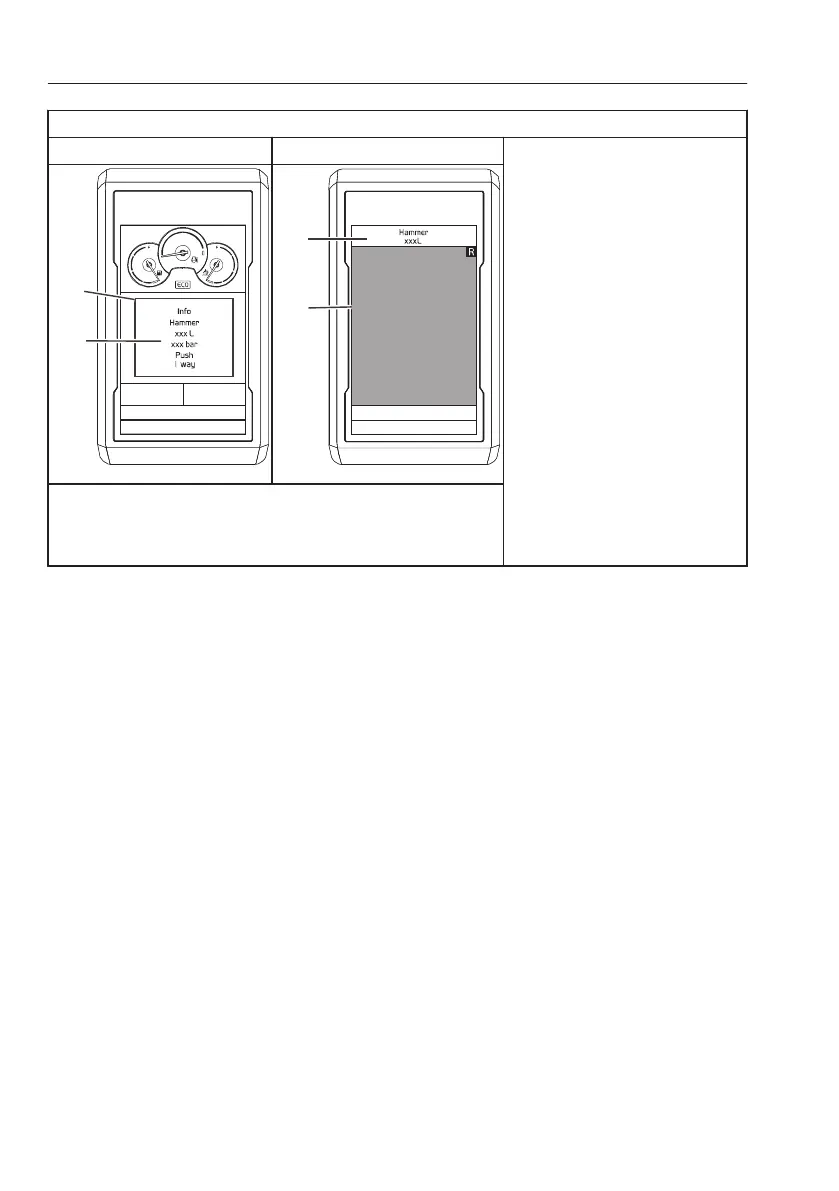

Alarm in main screen Alarm in camera screen
Result
- Non-time-critical information.
- Presentation of result from
selected action by operator.
- Symbol and text message in a
white box for result.
Function description
- Can be used to provide help for
the operator on activated
functions.
- Should be possible to activate/
deactivate to avoid
unnecessary disturbance for
operator not requiring this.
- Symbol and text message in a
green box for function
description.
V1208577
B,C
A
V1208578
B,C
D
A Information box (white or green)
B Symbol area (optional) (white or green)
C Text area for result/function description (white or green)
D Camera screen
Exhaust aftertreatment system, alarms
requiring special actions
See page
192 for detail.
68
Instrument panels
Display unit
