1 Unscrew 4 screws (A). Two are under rubber
mat (B).
2 Disconnect the wire harness of the air
conditioner.
3 After opening the 4 latches (D), open the cover
(C) and take out the filter.
4 Clean the filter with compressed air.
NOTE!
When using compressed air, keep the nozzle at a
distance from the filter to prevent damage. Clean
the filter with compressed air with a maximum
pressure of 0.2 MPa (2 kgf cm
2
) (29 psi).
5 If the filter is damaged or heavily contaminated,
replace it with a new one.
6 Install the filter, and assemble them in reverse
order.
High Efficiency Particulate Air filter (HEPA,
optional equipment)
Do not reuse or clean HEPA filter. Only replace the
filter with a new one every 500 hours.
NOTE!
Filter changes are to be done by a qualified service
technician, and HEPA filter must always be handled
with extra care. When changing HEPA filter, the
used filter shall be placed in the plastic bag that is
supplied with a new filter. Never shake the filter,
place it carefully in the supplied plastic bag. Then
the plastic bag shall be sealed and deposited with
at a suitable location for hazardous waste, such as
asbestos waste.
WARNING
Risk of hazardous inhalation.
Dangerous dust can lead to serious health
problems.
Always wear personal protective equipment,
including filter mask, eye protection and appropriate
gloves when handling and cleaning the engine
compartment, coolers and air filters.

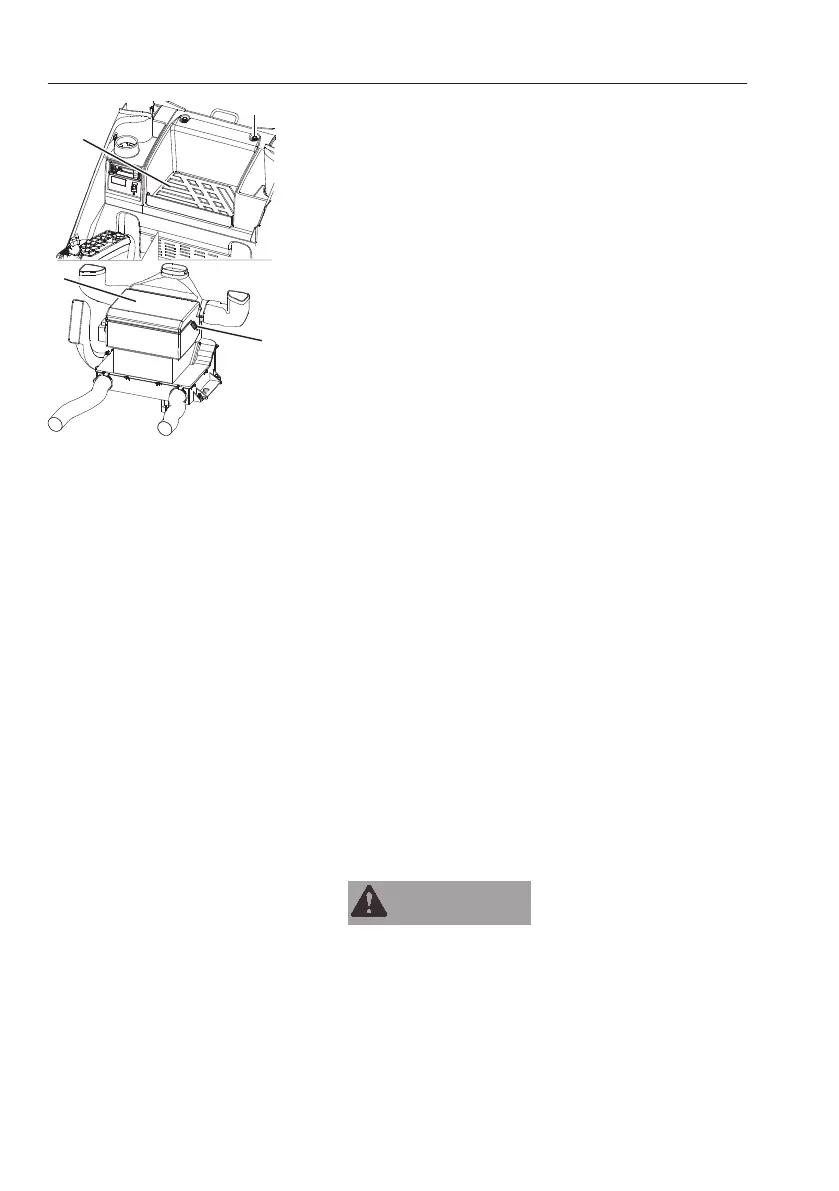

A Screws (4 EA)
B Rubber mat
C Cover
D Latches (4 EA)
314
Maintenance
Maintenance service, every 500 hours
