1 Central warning light
There are three different types of light.
For more information, see page
44
.
NOTE!
If the central warning light flashes or lights up while
operating, follow the instructions on the display unit.
2 Gauges
The gauges are always shown unless a warning
message is activated.
Fuel level gauge
The gauge shows the level in the fuel tank and it
has a red mark indicating "fuel empty". When the
gauge is in this area, the fuel left is about 10% of
total tank capacity. Refuel the machine immediately
in order to avoid air entering the system. If the
machine runs out of fuel during operation, refuel
and refer to page
328
for correct instructions to
bleed air from the fuel system.
Fuel tank capacity, see page
366
.
Engine coolant temperature gauge
The gauge shows the temperature of the engine
coolant and it has a red mark meaning "engine
overheated".
NOTE!
The red central warning light flashes, if the coolant
temperature becomes abnormally high. Turn off the
engine immediately and check the cause.

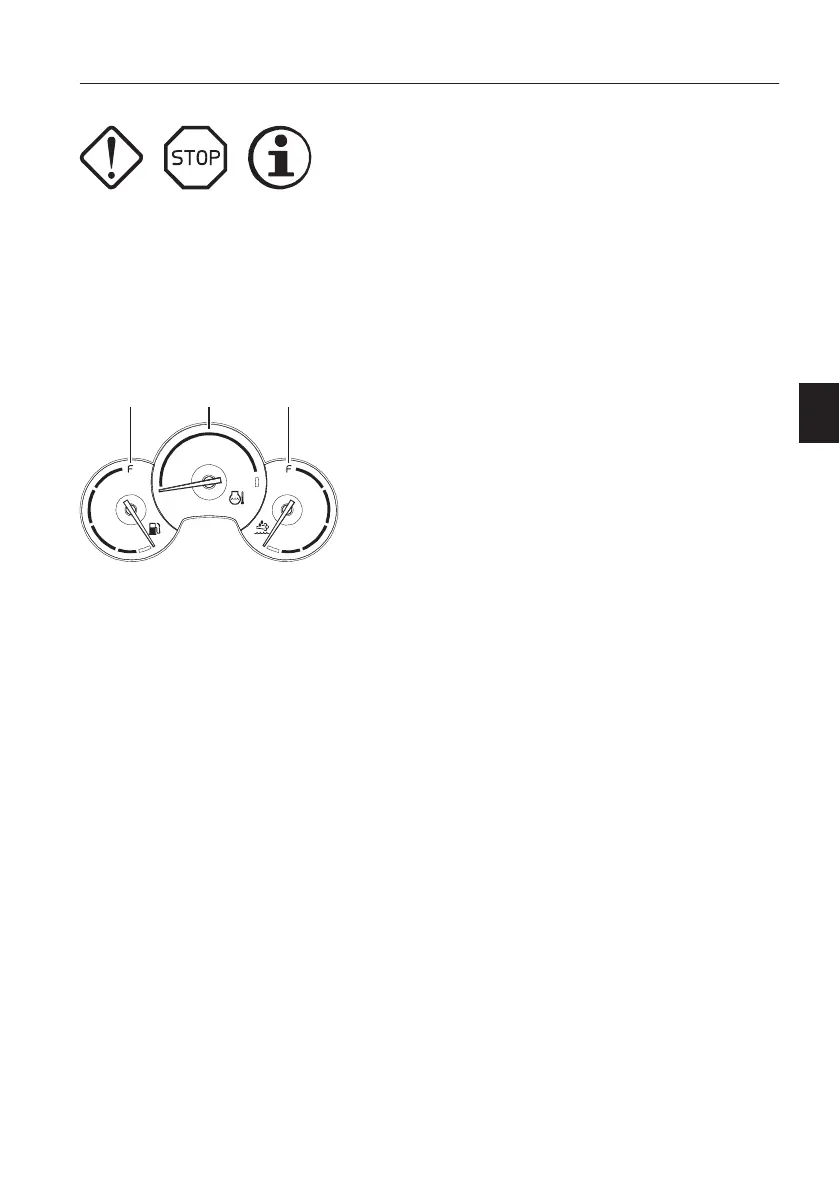

A Check, amber
B Warning, red
C Information, blue
A Fuel level gauge
B Engine coolant temperature gauge
C AdBlue®/DEF level gauge
Instrument panels
Instrument panel, front
39
