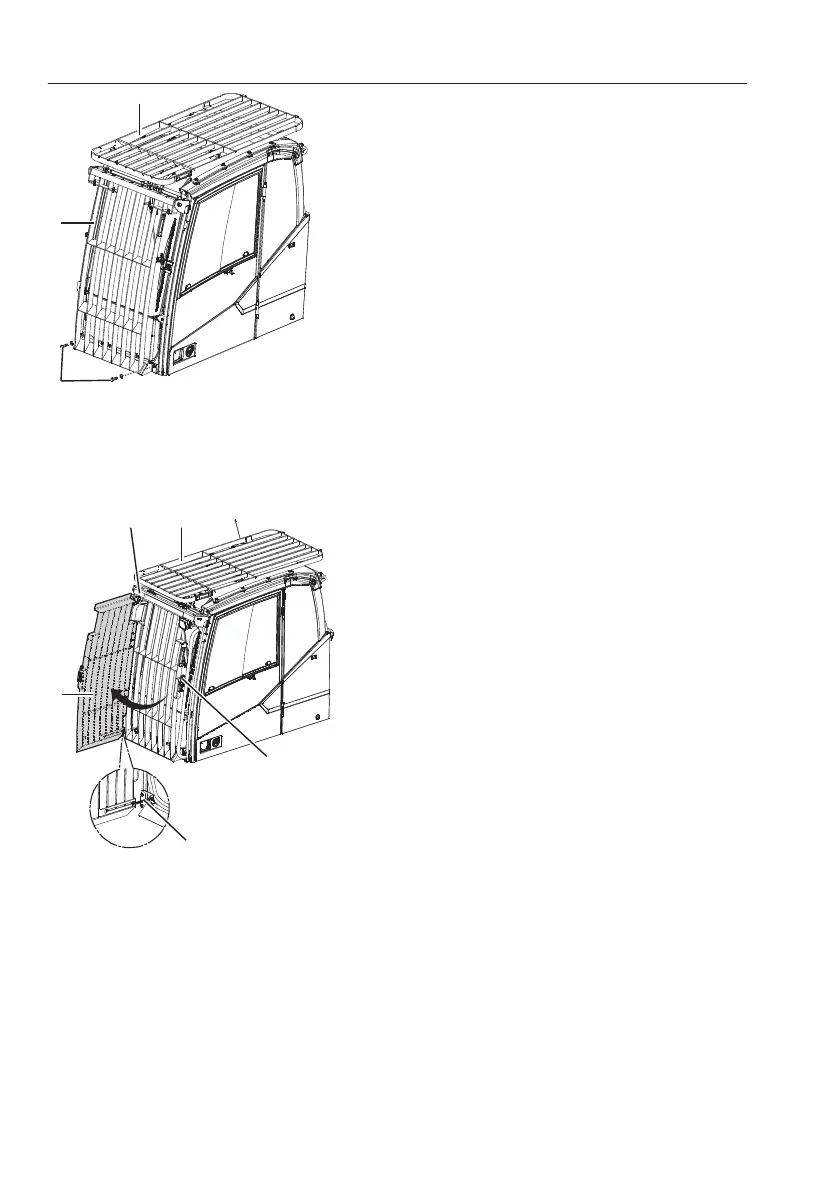

Windshield with FOG (tilting type), cleaning
1 Remove the screws (A), and then tilt the FOG.
2 Clean the windshield.
3 Fasten the screws (A) with regulated torque by
pushing the FOG. (48 ± 4.9 Nm / 4.9 ± 0.5
kgfm / 35.5 ± 3.6 lbf ft)
Do not operate the machine while FOG
(Falling Object Guard) is tilted. Otherwise,
FOG can be damaged by the bucket.
Windshield with FOG (hinge type), cleaning
1 Pull handle (C) to open front guard (D).
2 Hang stopper (E) in a hole to lock the front
guard.
3 Clean the windshield.
NOTE!
Do not operate the machine while the front guard is
opened. Otherwise, the front guard can be
damaged by the bucket.
A Screws
B+C FOG
C FOPS
A FOPS
A+B FOG
C Handle
D Front guard
E Stopper
108
Other controls
Cab
