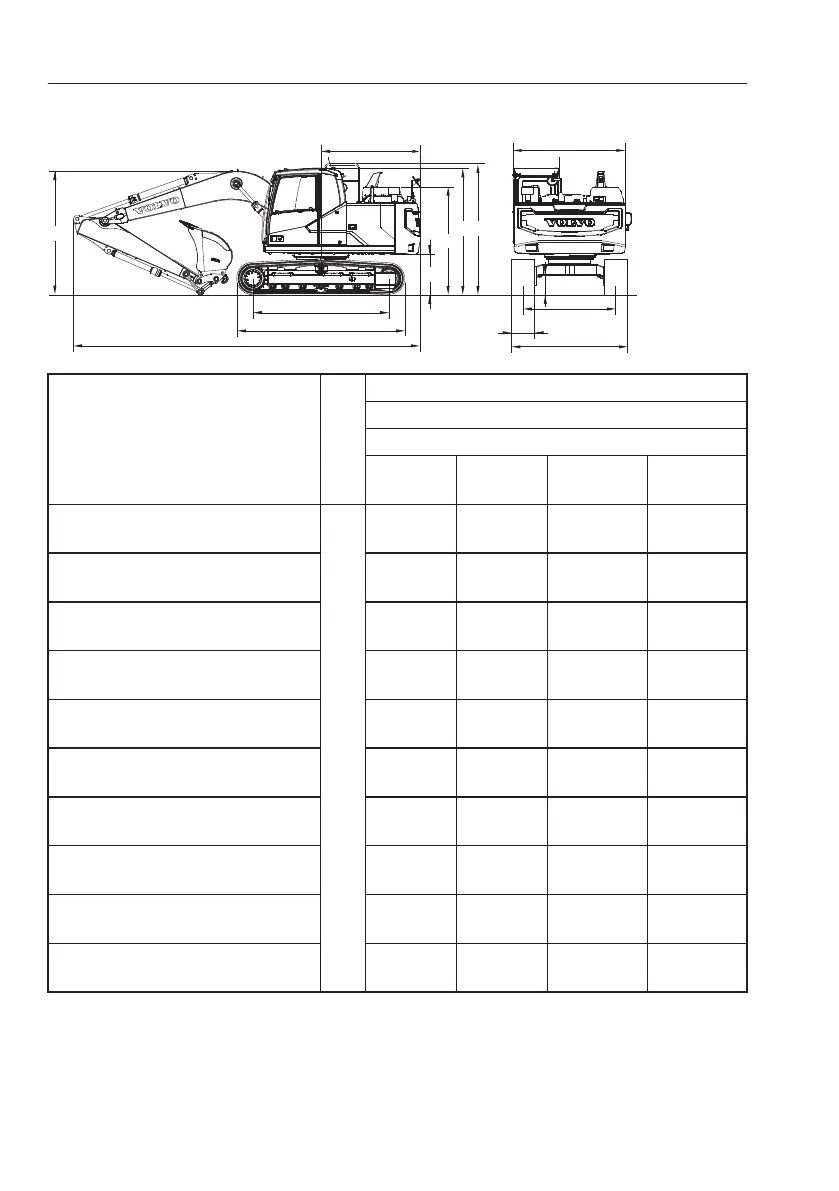

Total machine, dimensions (EC140E LM)
V1149075
B
H
I
J
K
M
C D
F
G
N
E
A
L
Description Unit
Boom
4.6 m (15' 1")
Dipper arm
1.9 m (6'
3")
2.1 m (6'
11")
2.5 m (8'
2")
3.0 m (9'
10")
A. Overall width of superstructure
mm
ft-in
2490
8' 2"
2490
8' 2"
2490
8' 2"
2490
8' 2"
B. Overall width
2690
8' 10"
2690
8' 10"
2690
8' 10"
2690
8' 10"
C. Overall height of cab
2994
9' 10"
2994
9' 10"
2994
9' 10"
2994
9' 10"
D. Overall height of guardrail
3130
10' 3"
3130
10' 3"
3130
10' 3"
3130
10' 3"
E. Tail swing radius
2200
7' 3"
2200
7' 3"
2200
7' 3"
2200
7' 3"
F. Overall height of engine hood
2590
8' 6"
2590
8' 6"
2590
8' 6"
2590
8' 6"
G. *Counterweight clearance
1113
3' 8"
1113
3' 8"
1113
3' 8"
1113
3' 8"
H. Tumbler length
3000
9' 10"
3000
9' 10"
3000
9' 10"
3000
9' 10"
I. Track length
3790
12' 5"
3790
12' 5"
3790
12' 5"
3790
12' 5"
J. Track gauge
1990
6' 6"
1990
6' 6"
1990
6' 6"
1990
6' 6"
