Replacing the Seal Pak 137
5

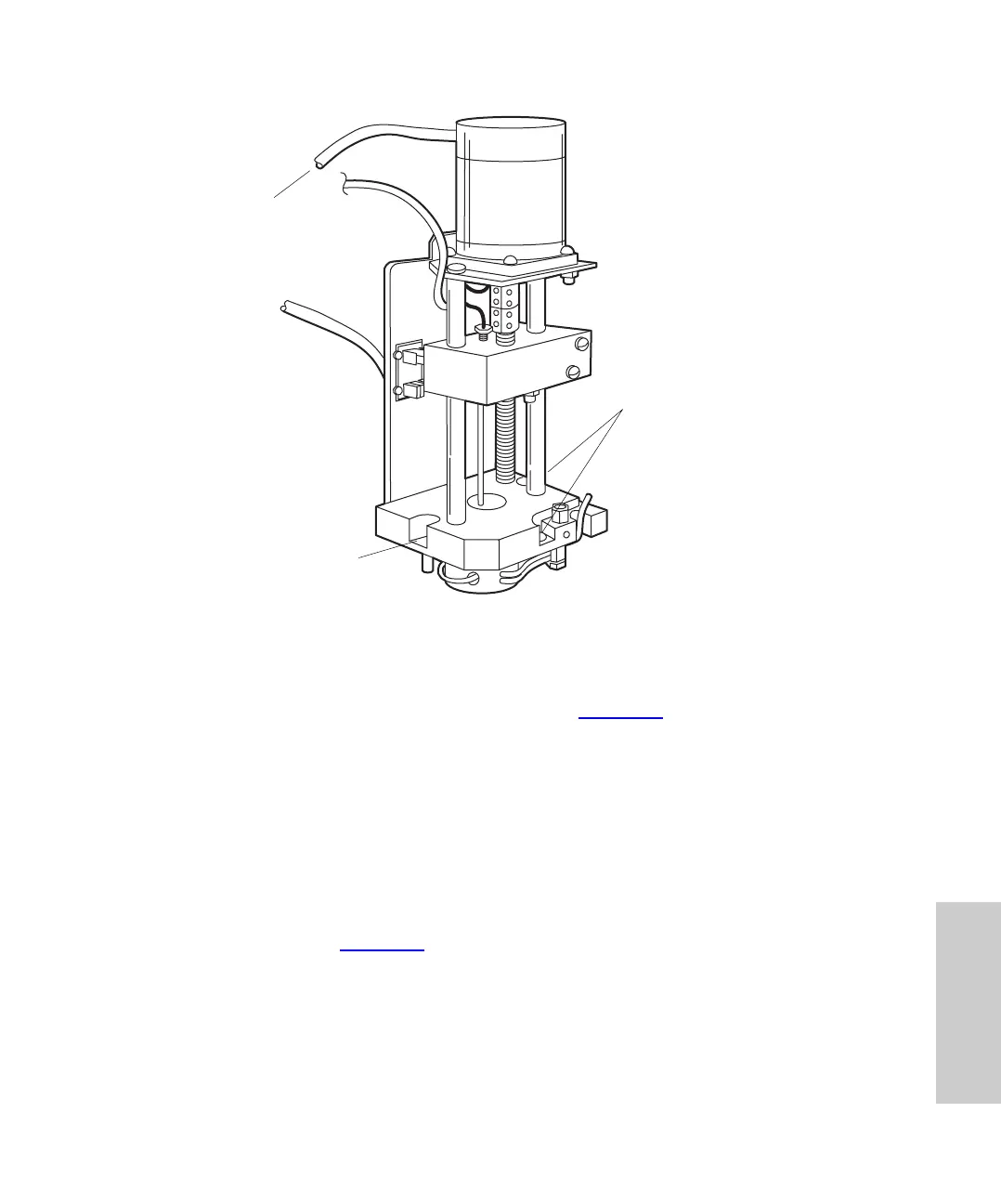

Figure 5-6 Removing the Injector (shown with Safety Shield Removed)
7. Using the long flat-blade screwdriver, loosen the three mounting screws securing
the injector to the floor of the compartment (Figure 5-6
).
8. Carefully lay the injector on its side.
5.3.2 Removing the Seal Pak
To remove the seal pak:
1. Disconnect the tubing from the union on the side of the mounting plate.
2. Disconnect the needle wash lines from the seal pak.
3. Using a Torx T10 wrench, remove the four screws holding the seal pak to the base
of the injector (Figure 5-7
).
Power
Motor
Cable
Sensor
Cable
Needle Wash Lines
Mounting Screws
Mounting Screw
