Installation 52
2

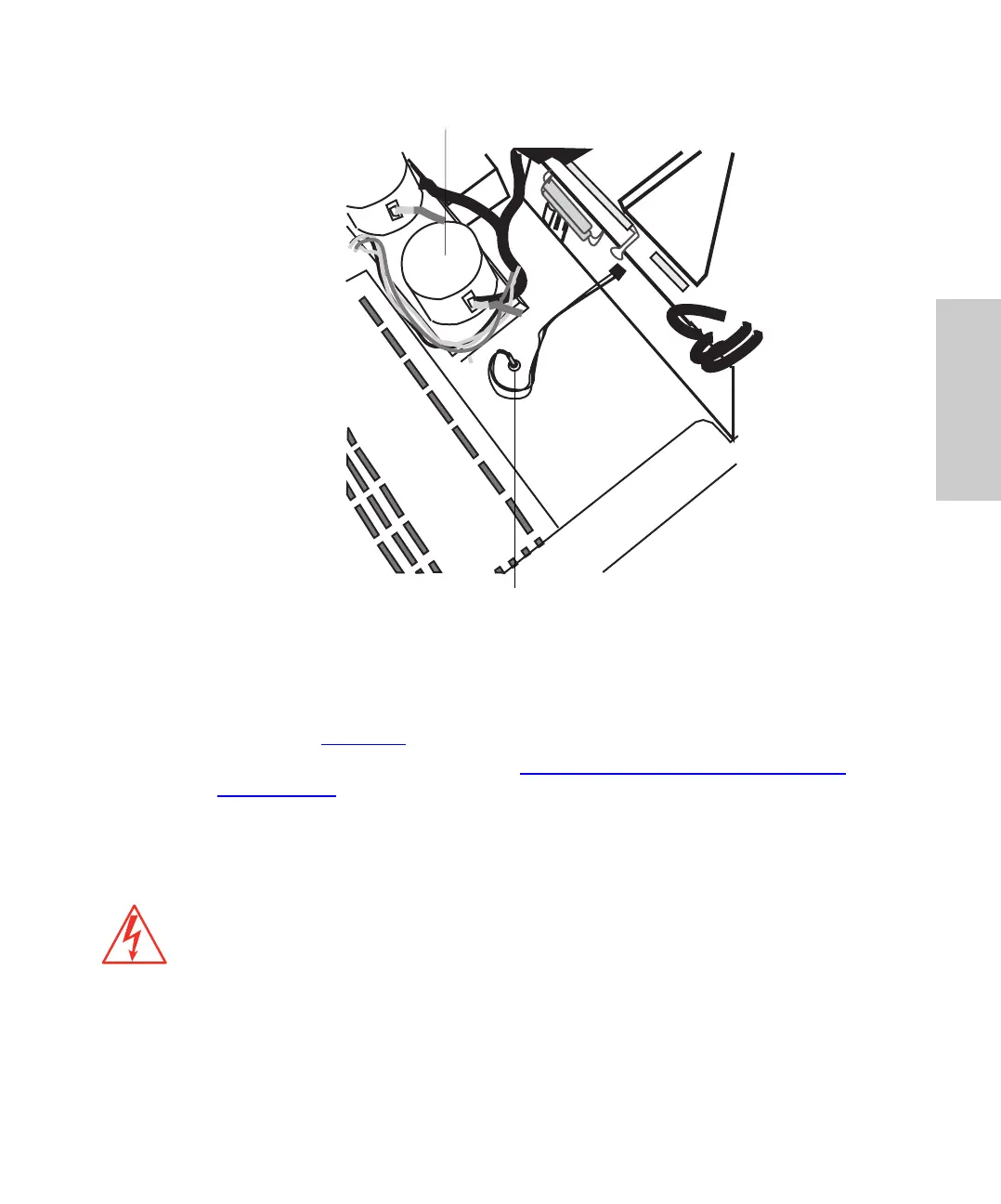

Figure 2-10 Installing the Temperature Probe
7. Attach the temperature probe connector to the main circuit board. The temperature
probe connects to the main circuit board at J18, located to the lower right of the
battery (see Figure 2-9
).
8. Replace the autosampler cover (see Section 2.6.1,
Removing/Replacing the
717plus Cover) and reconnect the power cord.
2.6.3 Installing the Large Sample Loop
To inject sample volumes greater than 200 µL, you must install the auxiliary loop.
Required tools:
• One 5/16-inch wrench
• One adjustable wrench
Caution: To avoid the possibility of electric shock, disconnect the autosampler power
cord before continuing this procedure.
Temperature Probe
Carousel Drive
