Waters 717plus - Locating In-Line Filters

Replacing In-Line Filters 141
5

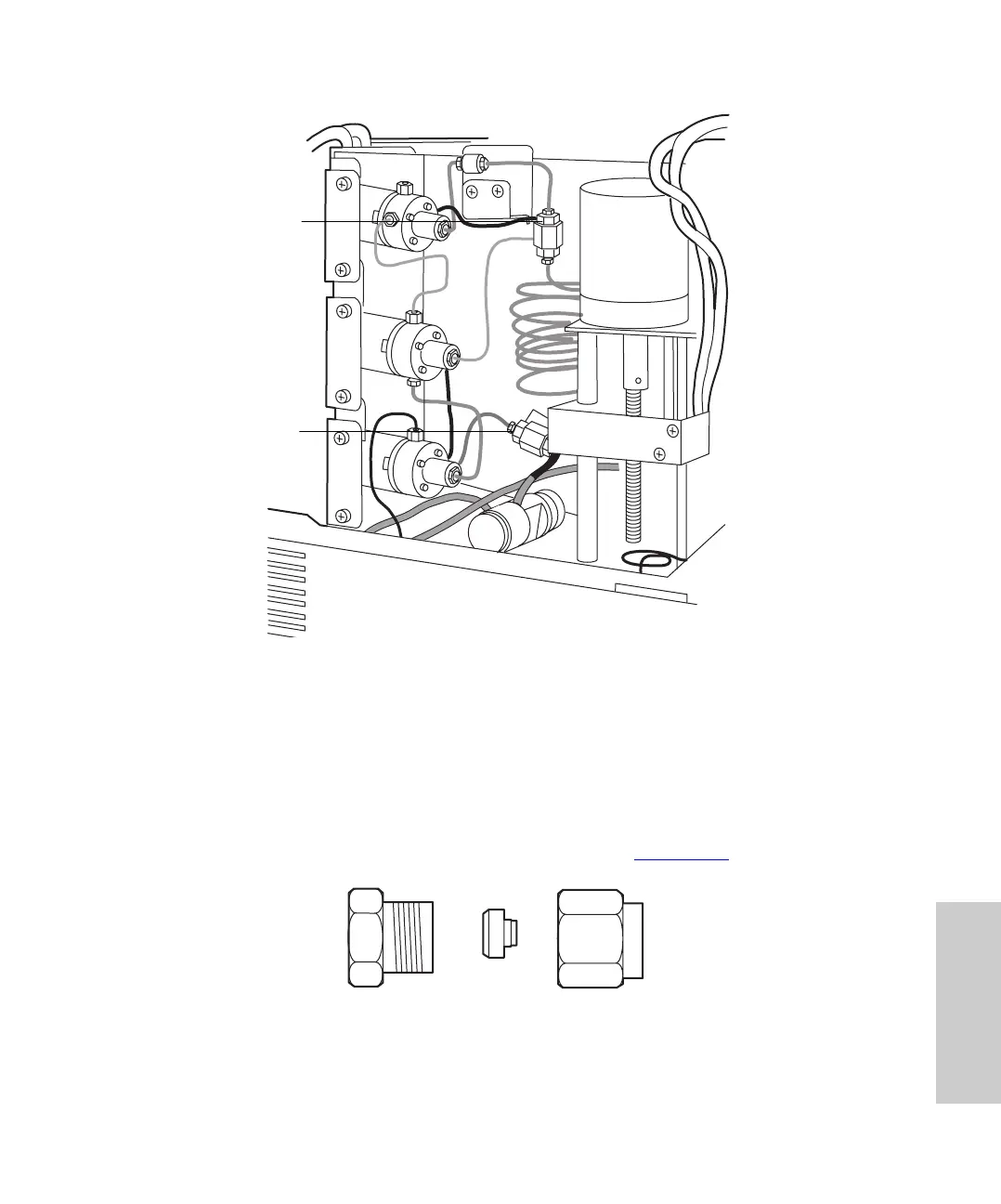

Figure 5-9 Locating In-Line Filters
3. Holding the in-line filter with a 5/8-inch wrench, disconnect both compression
screws with the 5/16-inch wrench.
4. Repeat step 2 on the other in-line filter.
5. Disassemble each filter using two 5/8-inch wrenches.
6. Wash each in-line filter housing with methanol.
7. Assemble each in-line filter with a new filter insert (Figure 5-10
).
Figure 5-10 Assembling In-Line Filters
In-Line Filter
(inlet side)
In-Line Filter
(inlet side)
Filter
Insert
Inlet
