Waters 717plus - Connecting the Heater;Cooler Power Cord and Temperature Probe

Changing the Hardware Configuration 51
2

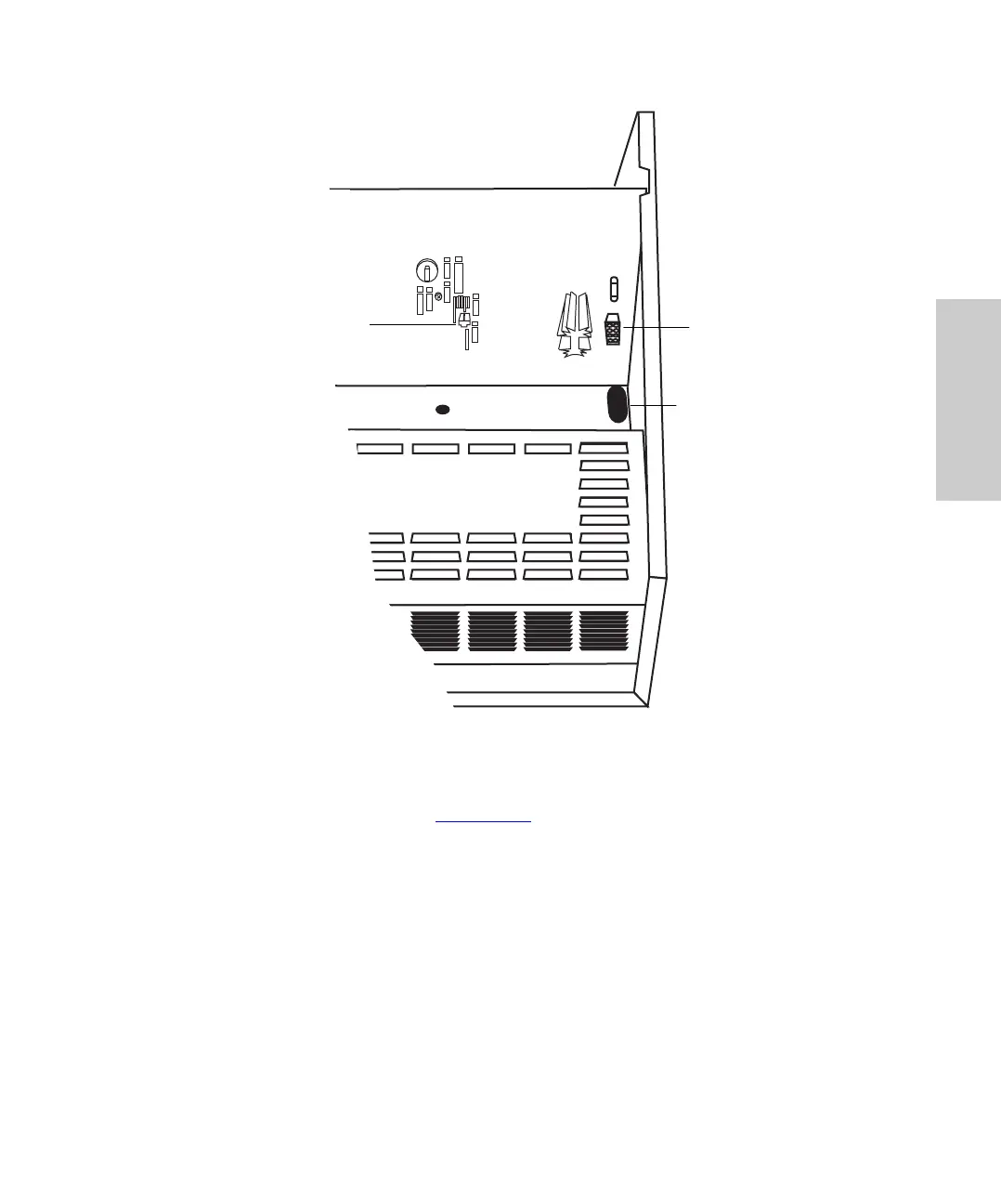

Figure 2-9 Connecting the Heater/Cooler Power Cord and Temperature Probe
6. Push the temperature probe through the grommet located on the floor of the unit
behind the carousel drive (Figure 2-10
). Push the probe down until it reaches the
stop.
Temperature Probe
Connector
Heater/Cooler
Power
Connector
(J20)
Opening For
Heater/Cooler
Power Cable
