Waters 717plus - Installing Heater;Cooler

Installation 50
2

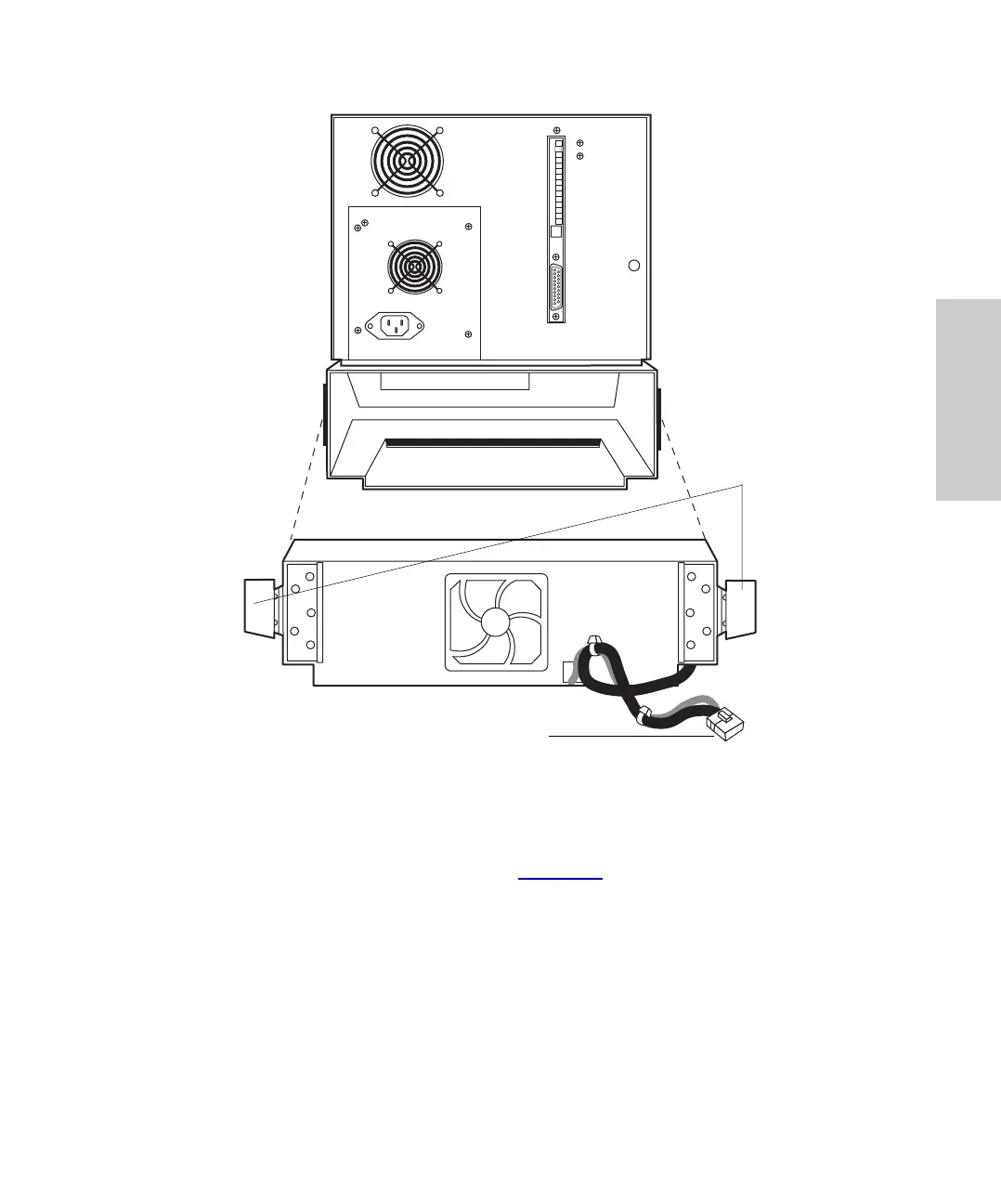

Figure 2-8 Installing Heater/Cooler
5. Feed the power cable up through the opening in the chassis and attach it to the J20
connector on the main circuit board (Figure 2-9
).
TP01989
123456789101112131415
Side Clips
Heater/Cooler
Power Cable
