WinGD X72 Maintenance Manual

Maintenance3303−2/A1
Winterthur Gas & Diesel Ltd.
4/ 7

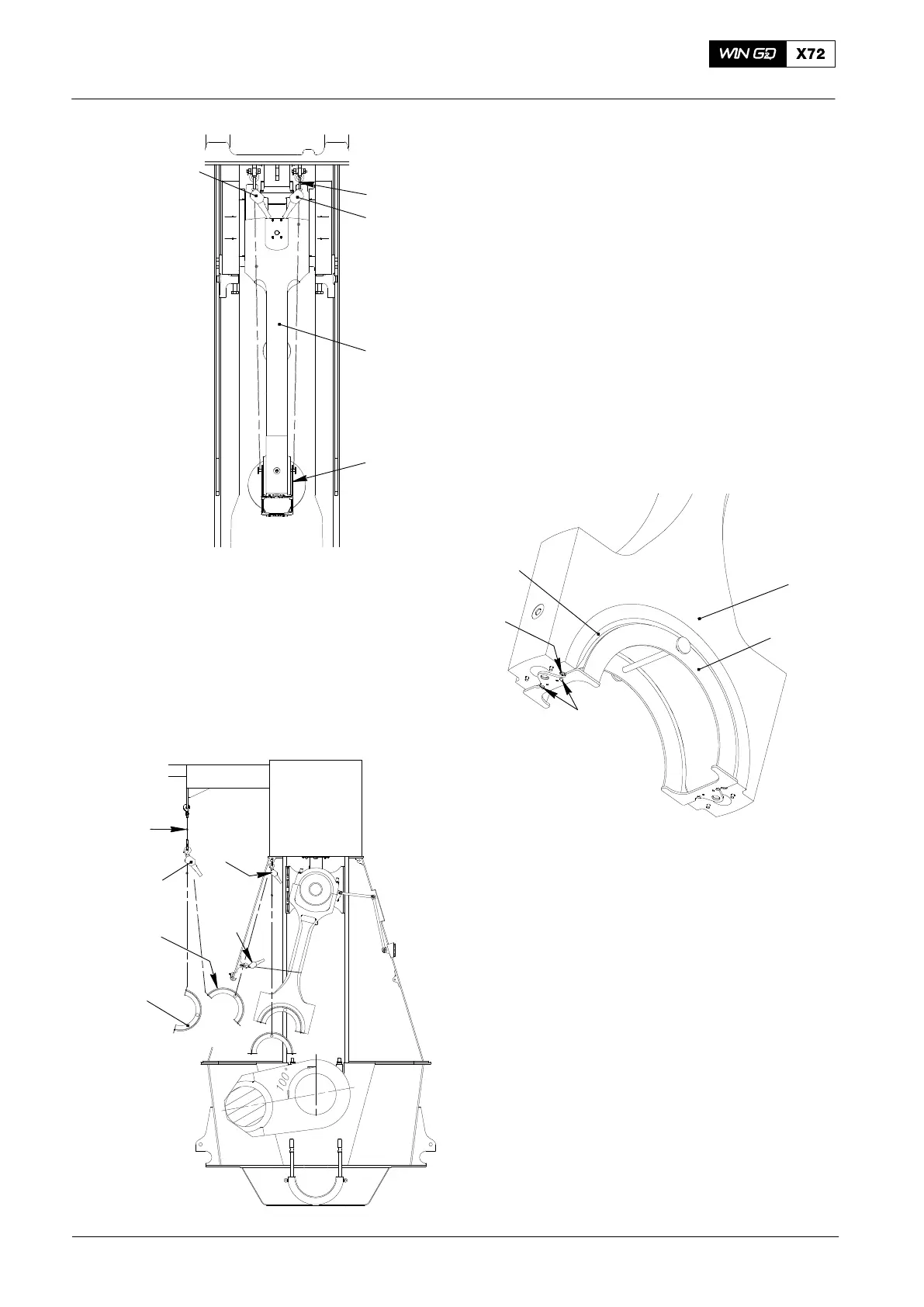

5. Top Bearing Shell −
Removal
1) Attach the two shackles (94018C,
Fig. 6) to the column.
2) Attach the manual ratchets (H1, H5) to
the shackles (94018C).
3) Attach the console frame (94326,
Fig. 7) to the bearing shell (10) with the
four screws (11).
4) Connect the manual ratchets (H1, H5)
to the console frame (94326).
5) Apply a light tension to the manual
ratchets (H1 and H5, Fig. 6).
6) Remove the four screws 12 (Fig. 7).
WCH02423
1
11
94326
10
12
Fig. 7
7) Use the manual ratchets (H5, H1) to
lower the console frame (94326, Fig. 8)
together with the bearing shell (10).
8) Connect the manual ratchet (H4) to the
eyelet in console frame (94326).
9) Use the manual ratchets (H4, H1, H5)
to move the console frame (94326) and
bearing shell (10) out of the column.
10) Remove the manual ratchets (H1, H5).
2015
Bottom End Bearing − Removal, Inspection and Installation
WCH02423
94326
H1
H5
94018C
1
Fig. 6
WCH02423
H4
94326
H3
10
94019B
H5/H1
Fig. 8
