Xerox Phaser 3600

Phaser 3600 Printer Service Manual 6-3
Cleaning and Maintenance
Cleaning the Laser Scan Unit
1. Remove the Right Cover (page 7-6).
2. Remove the Left Cover (page 7-7).
3. Remove the Top Cover (page 7-10).
4. Remove the cover-frame exit cover to expose the Laser Scan Unit
window.
5. Use a dry lint-free cloth to wipe any dust off of the window.
Cleaning the Print Cartridge
Caution
Do not expose the Print Cartridge to light for more than 5 minutes. Cover the
Print Cartridge to avoid damage.

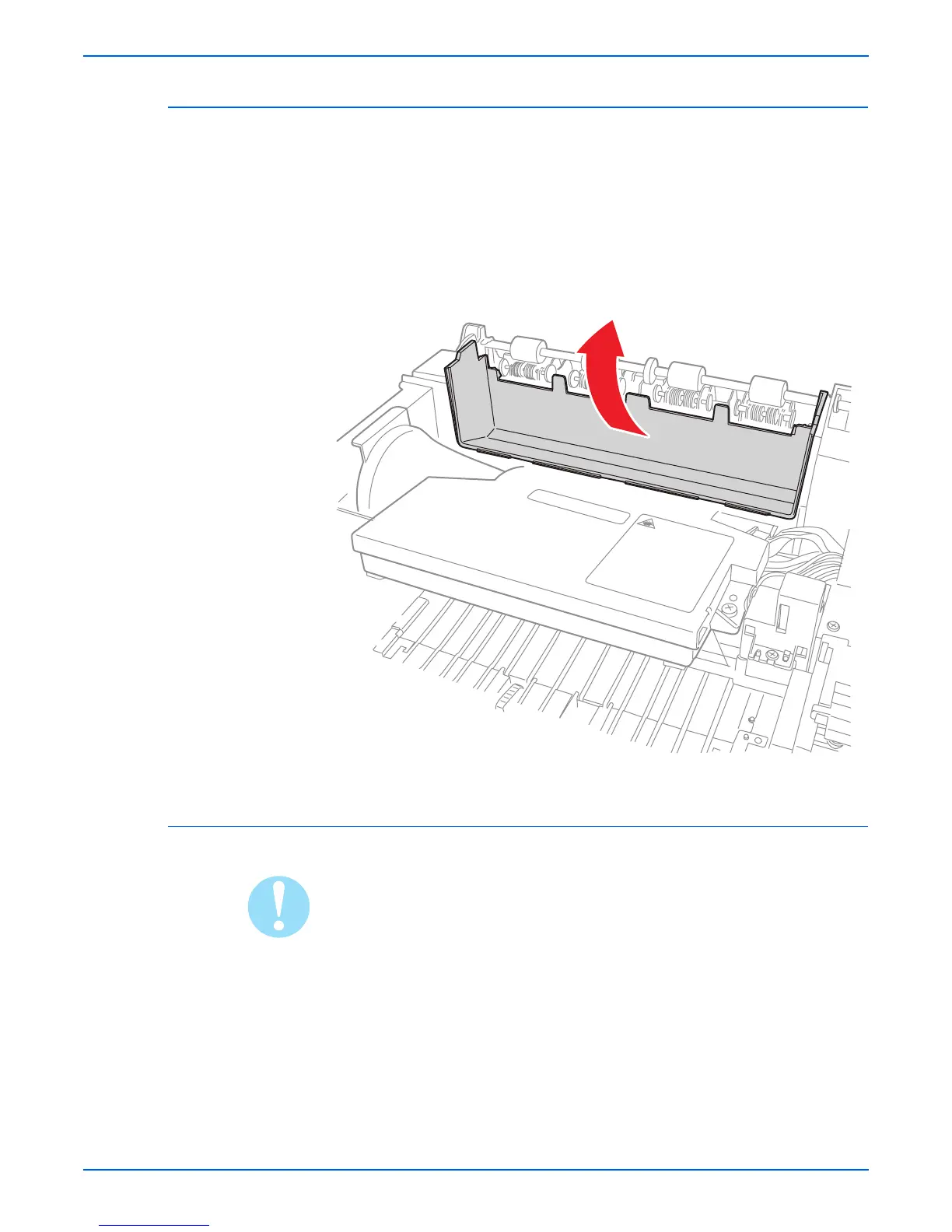

1. Open the Top Cover.
2. Remove the Print Cartridge.
3. Use a dry lint-free cloth to wipe any dust and/or spilled toner from the
Print Cartridge area. Remove any paper debris from the area.
s3600-091
