Xerox Phaser 3600

Phaser 3600 Printer Service Manual 7-25
Service Parts Disassembly
Pick Roller and Shaft (PL 1.3.2.5)
1. Remove the Right Cover (page 7-6).
2. Remove the Left Cover (page 7-7).
3. Remove the Top Cover (page 7-10).
4. Remove the Tray 1 (MPT) Assembly (page 7-14).
5. Remove the Inner Cover (page 7-16).
6. Remove the Main Drive Assembly (page 7-38).

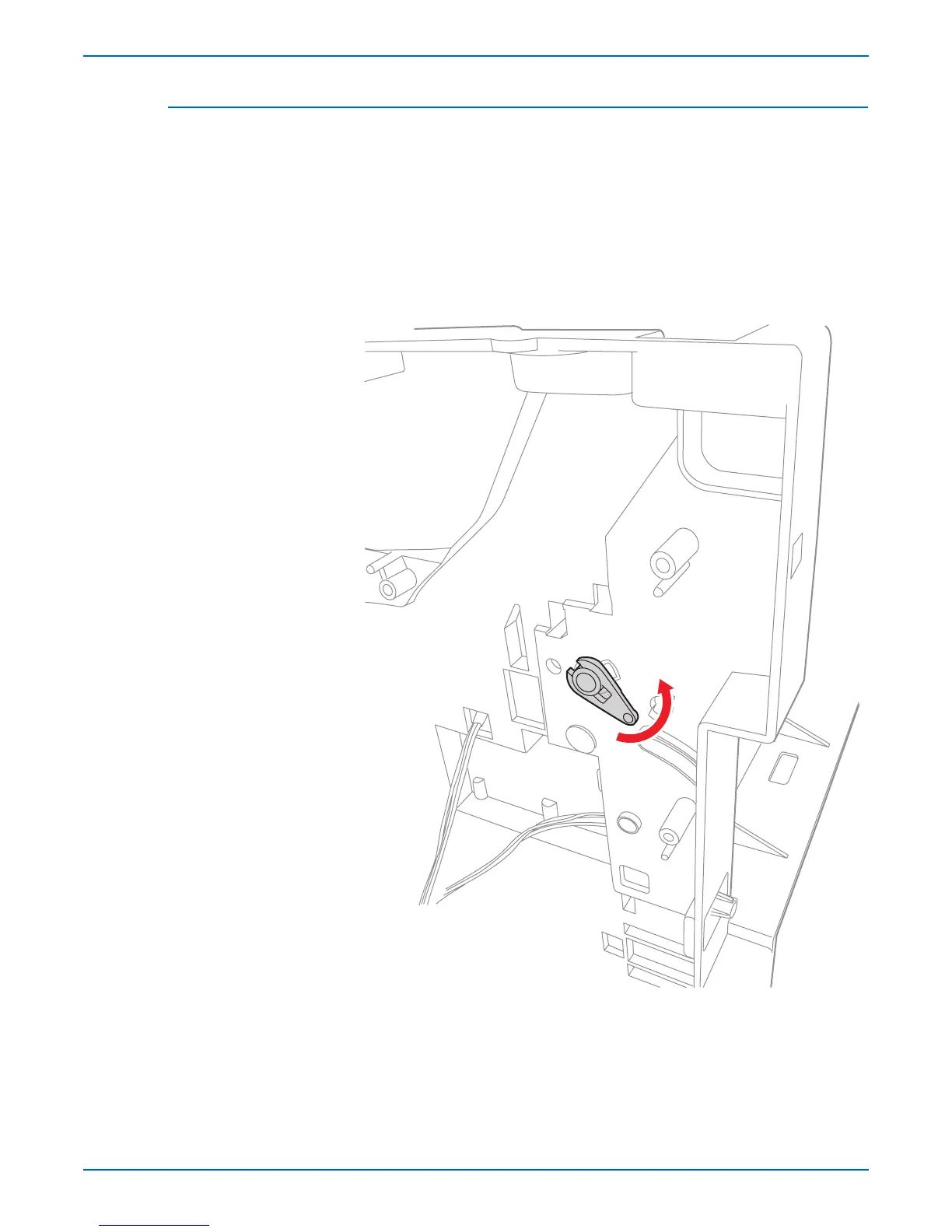

7. Remove the locking bearing on the front of the shaft by rotating it in the
direction of the arrows shown below.
s3600-095
