Xerox Phaser 3600 Service Manual

2-6 Phaser 3600 Printer Service Manual
Theory of Operation
Print Engine Assemblies
The print engine assemblies include the following:
■ Image Processing and the Main Board
■ Laser Scan Unit
■ Main Drive Assembly
■ Feed assembly Process and Components
■ Transfer Roller Assembly
■ Fuser Assembly
Image Processing Assembly and Main Board
The Main Board receives image data from the host computer, converts it to a
bitmap image, and then transfers the image to the Laser Scan Unit (LSU).
The Main Board combines the Image Processor and Engine Control
func
tions. It contains a 32 bit RISC processor and comes with a standard
memory capacity of 64 Mbytes of RAM and 4 Mbytes of flash memory. The
board provides one expansion slot that allows available memory to be
expanded up to 512 Mbytes with two 256Mbyte RAM DIMM.

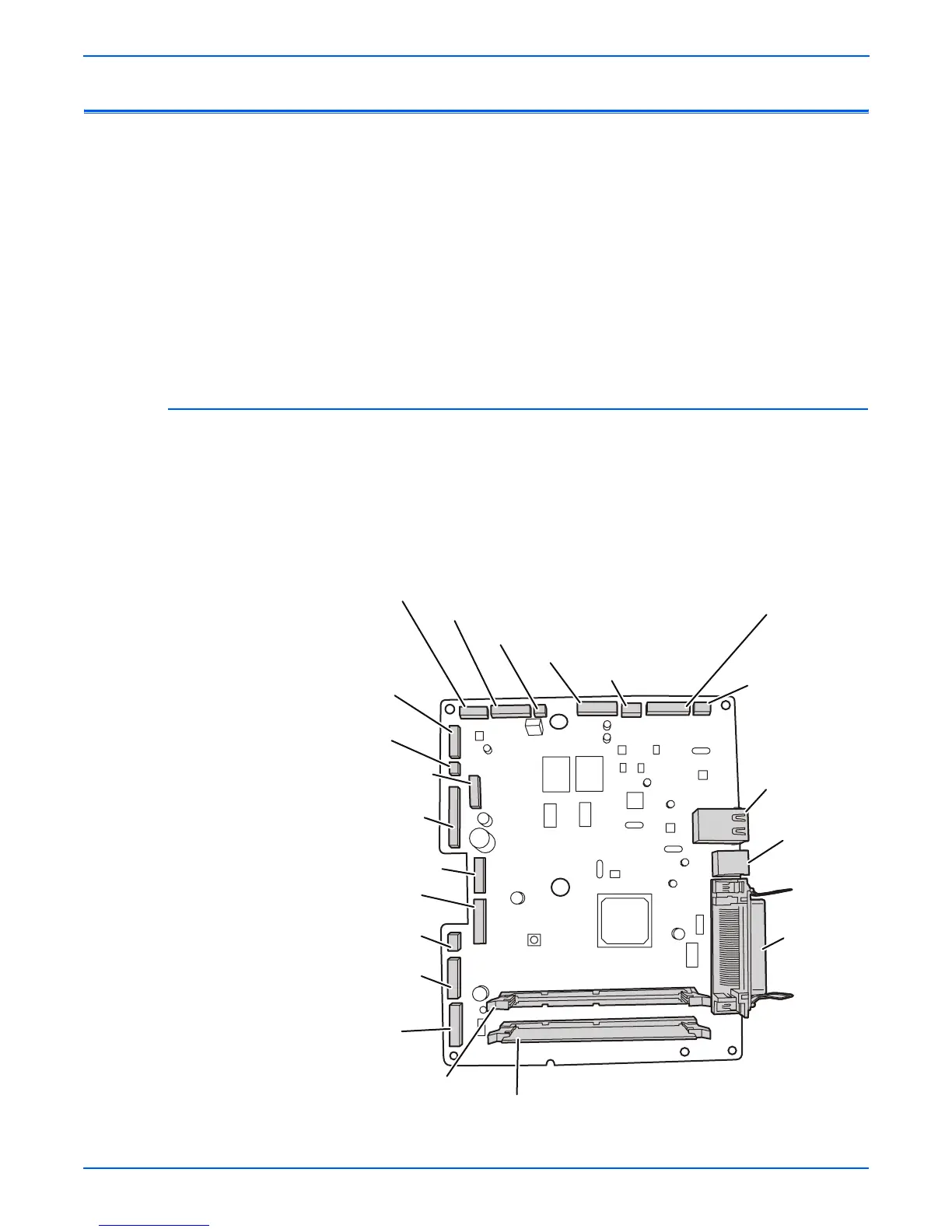

s3600-077
C
ontrol Panel (
C
N16)
Cover Open (CN26)
Duplex Solenoid (CN11)
Developer
Motor (CN20)
PTL (CN21)
Power (CN22)
Duplex (CN17)
Main Motor
(CN18)
Exit Sensor
(CN23)
Joint Board
(CN24)
Optional
3rd Tray
(CN25)
Parallel Port
(CN3)
USB (CN2)
Ethernet (CN1)
Rear Fan (CN4)
RAM DIMM 1 (CN14)
RAM DIMM 0 (CN12)
LVPS (CN19)
Toner Sensor Board (CN6)
Laser Unit (CN9)
Thermistor (CN8)

Xerox Phaser 3600 Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Warm-up time (from sleep mode)	31 s
Print speed (black, normal quality, A4/US Letter)	38 ppm
Internal memory	32 MB
Maximum internal memory	512 MB
Total input capacity	600 sheets
Total output capacity	250 sheets
Maximum input capacity	1100 sheets
Paper tray 2 input capacity	500 sheets
Functions	Print
I/O ports	Parallel (IEEE 1284), USB 2.0
Device manager	DHCP, Xerox CentreWare Internet Services Embedded Web Server, Xerox CentreWare Printer Management for Microsoft, Novell, and UNIX
Package length	563.87 mm
Depth (imperial)	18.8 \
Width (imperial)	15.7 \
Height (imperial)	15.1 \
Power requirements	240 V, 50/60 Hz
Standard input trays	2
Print memory (standard)	64 MB
Power consumption (active)	700 W
Compatible operating systems	HP-UX 10.2, Linux, Mac OS X ver.10.2 Red Hat 9, SCO, SUSE 9, Solaris 2.5.1/2.6+, Windows 2000/Vista
Acoustic power emissions (standby)	35 dB
Standard output capacity for envelopes	8000 sheets
Acoustic power emissions (active, print, copy or scan)	56 dB
PCL fonts	68
Certification	CE, UL 60950-1/CSA 60950-1-03, FCC Part 15 Class A, 73/23/EEC, RoHS 2002/95/EC
Maximum duty cycle	200000 pages per month
Recommended duty cycle	8000 pages per month
Number of PostScript fonts	136
Power consumption (standby)	13 W
Power consumption (PowerSave)	130 W
Export Control Classification Number (ECCN)	EAR99

Weight and Dimensions

Depth	478 mm
Width	399 mm
Height	383 mm
Package width	515.61 mm
Package height	584.19 mm
Package weight	21201.2 g
Dimensions (WxDxH)	399 x 462 x 383 mm
