7-4 Phaser 3600 Printer Service Manual
Service Parts Disassembly
Fastener Types
The following table lists the primary types of Posi-Drive screws used to
assemble the printer. The procedures provide dimensional specifications for
screws being removed.
Caution
Use care when installing self-tapping screws in plastic. To properly start the
screw in plastic, turn the screw counter-clockwise in the hole until you feel the
screw engage the threads, then tighten as usual. Failure to properly align or
over tighten the screw can result in damage to previously tapped threads.
Always use the correct type and size screw. Using the wrong screw can
damage tapped holes. Do not use excessive force to remove or install
either a screw or a printer part.
N
o
t
e
Unless specifically noted in the text, all screws listed in the disassembly
chapter for the Phaser 3600 are 10mm self tapping screws.

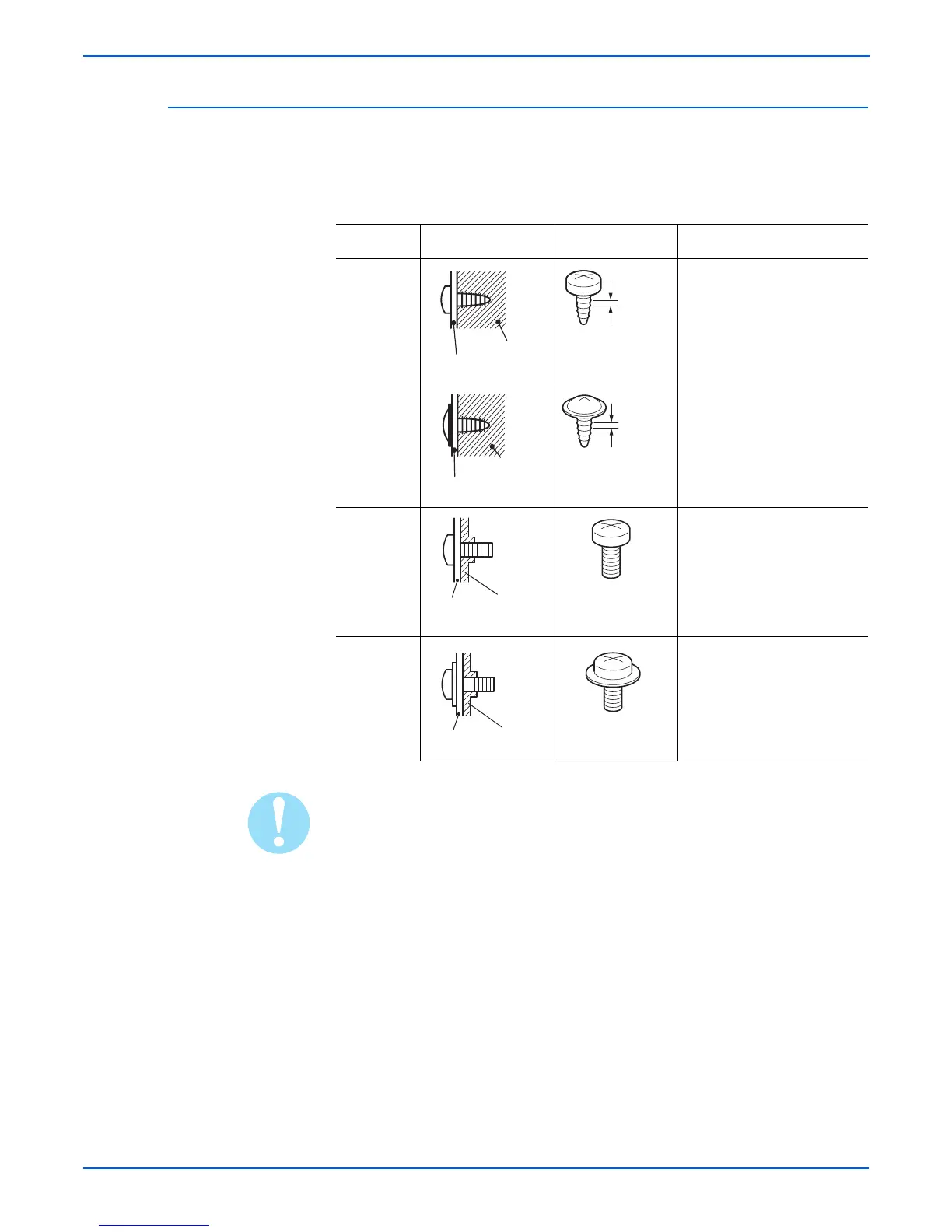

Posi-Drive Screw Types used in the Printer
Type Application Shape Characteristics
Self-
t
a
pping,
plastic
1. Silver colored.
2. Screw thread is coarse
compared to metal screw.
3. Screw tip is thin.
Self-
t
a
pping,
plastic, with
flange
1. Black colored.
2
. Screw thread is coarse
compared to metal screw.
3. Screw has a flange.
4. Screw tip is thin.
Sheet Metal,
si
l
ver
1. Silver colored.
2. Diameter is uniform.
Sheet Metal,
wi
th
flange
1. Silver colored.
2. Screw has a flange.
3. Diameter is uniform.
Parts etc.
Plastic
Coarse
Parts etc.
Plastic
Coarse
Parts etc.
Sheet
Metal
Parts etc.
Sheet
Metal

Xerox Phaser 3600 Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Warm-up time (from sleep mode)	31 s
Print speed (black, normal quality, A4/US Letter)	38 ppm
Internal memory	32 MB
Maximum internal memory	512 MB
Total input capacity	600 sheets
Total output capacity	250 sheets
Maximum input capacity	1100 sheets
Paper tray 2 input capacity	500 sheets
Functions	Print
I/O ports	Parallel (IEEE 1284), USB 2.0
Device manager	DHCP, Xerox CentreWare Internet Services Embedded Web Server, Xerox CentreWare Printer Management for Microsoft, Novell, and UNIX
Package length	563.87 mm
Depth (imperial)	18.8 \
Width (imperial)	15.7 \
Height (imperial)	15.1 \
Power requirements	240 V, 50/60 Hz
Standard input trays	2
Print memory (standard)	64 MB
Power consumption (active)	700 W
Compatible operating systems	HP-UX 10.2, Linux, Mac OS X ver.10.2 Red Hat 9, SCO, SUSE 9, Solaris 2.5.1/2.6+, Windows 2000/Vista
Acoustic power emissions (standby)	35 dB
Standard output capacity for envelopes	8000 sheets
Acoustic power emissions (active, print, copy or scan)	56 dB
PCL fonts	68
Certification	CE, UL 60950-1/CSA 60950-1-03, FCC Part 15 Class A, 73/23/EEC, RoHS 2002/95/EC
Maximum duty cycle	200000 pages per month
Recommended duty cycle	8000 pages per month
Number of PostScript fonts	136
Power consumption (standby)	13 W
Power consumption (PowerSave)	130 W
Export Control Classification Number (ECCN)	EAR99

Weight and Dimensions

Depth	478 mm
Width	399 mm
Height	383 mm
Package width	515.61 mm
Package height	584.19 mm
Package weight	21201.2 g
Dimensions (WxDxH)	399 x 462 x 383 mm
