Pick-Up Gear and Bearing (PL 1.1.21)
1. Perform all steps for removing the Tray 2 Pick-Up Assembly and Rollers
(page 7-30).
2. Remove the pick up gear.
3. Remove the locking bearing.

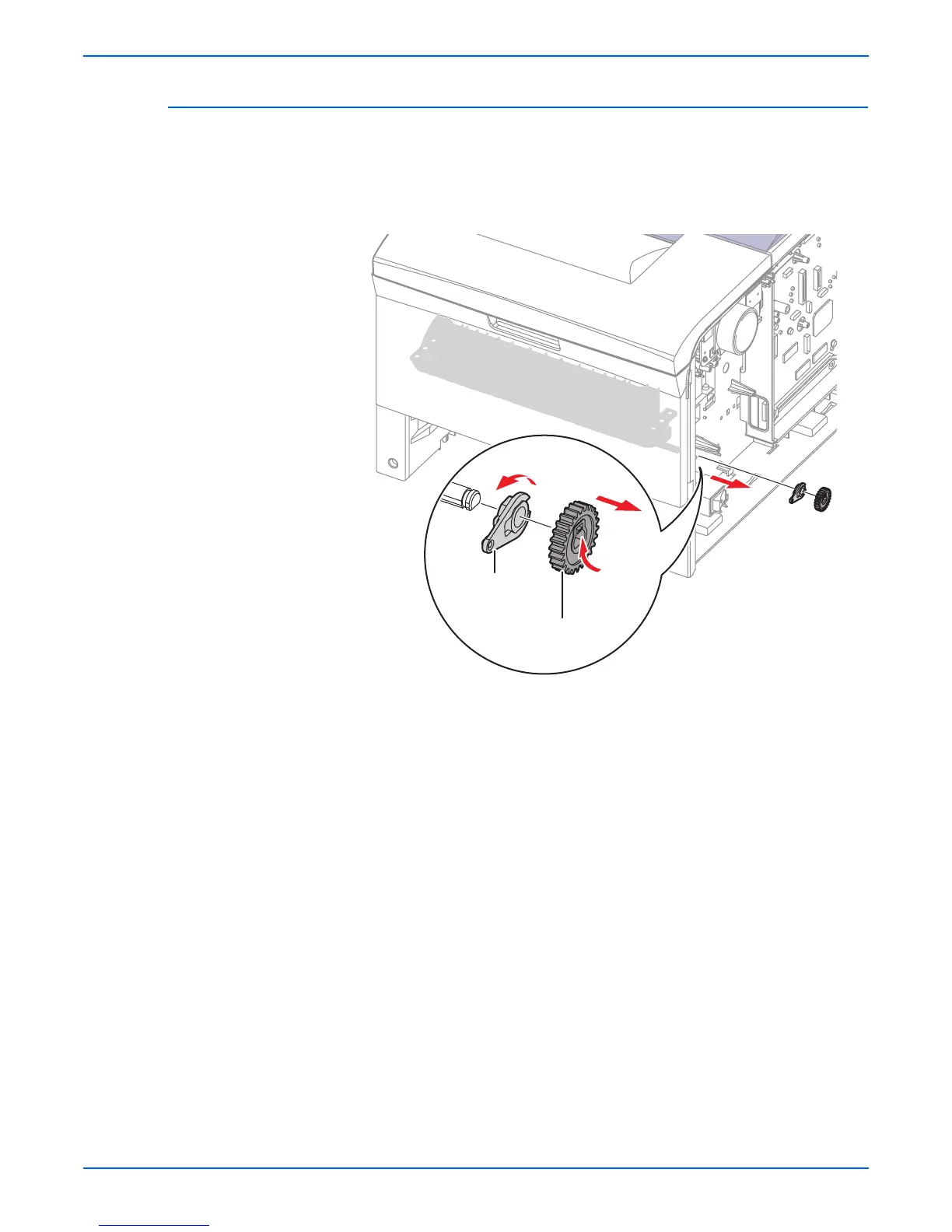

Bearing
Pick Up Gear
s3600-049
