Xerox Phaser 3600

Phaser 3600 Printer Service Manual 7-23
Service Parts Disassembly
Paper Tray Empty Actuator (PL1.3.58)
The Paper Tray Actuator passes through the Paper Tray Empty Sensor, which
is soldered in the Switched Mode Power Supply (SMPS).
1. Remove the Tray 1 (MPT) Assembly (page 7-14).
2. Loc
ate the Paper Tray Empty Actuator on the opposite side of the SMPS
board and chassis.

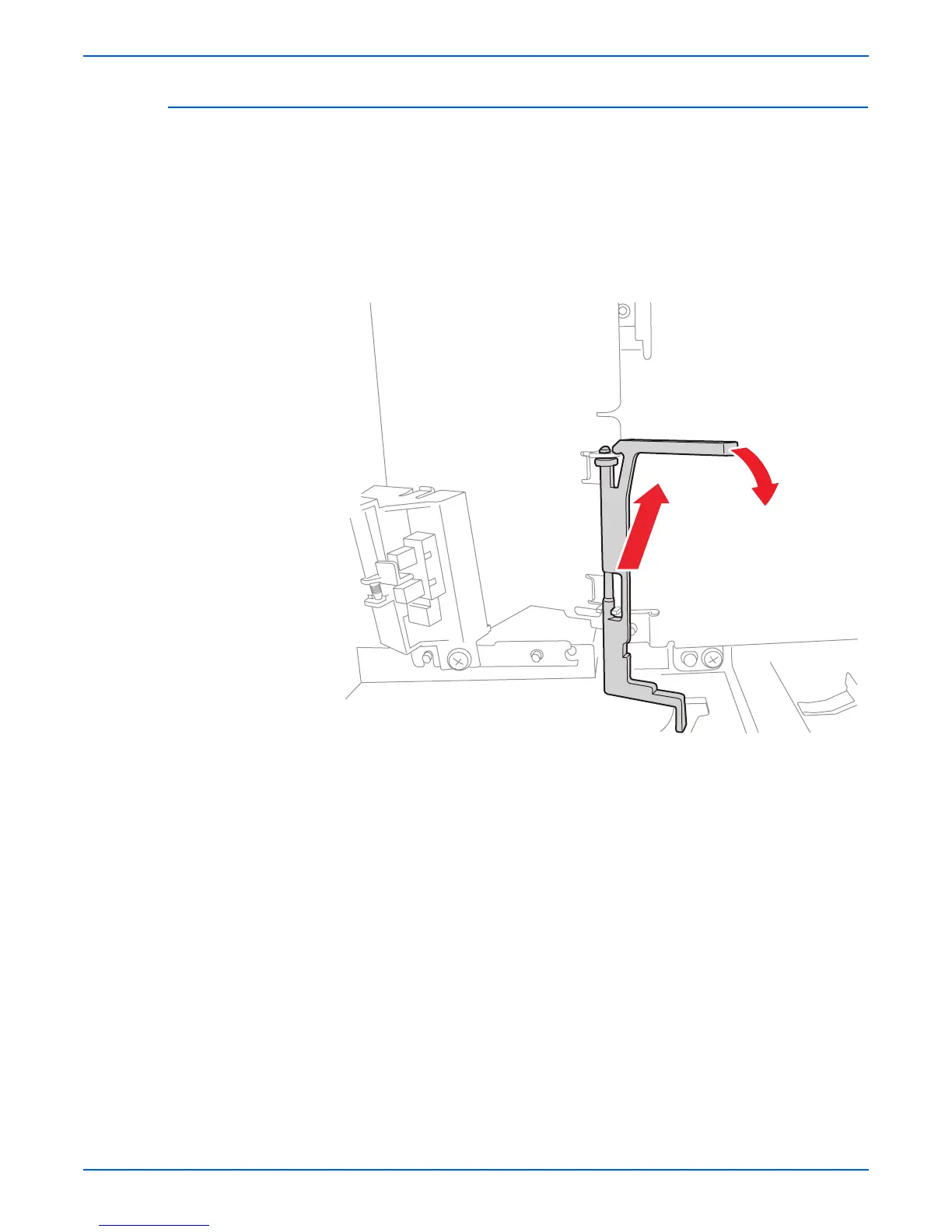

3. Depress the elongated portion of the actuator slightly to release, then
remove the actuator from the chassis slot.
s3600-088
