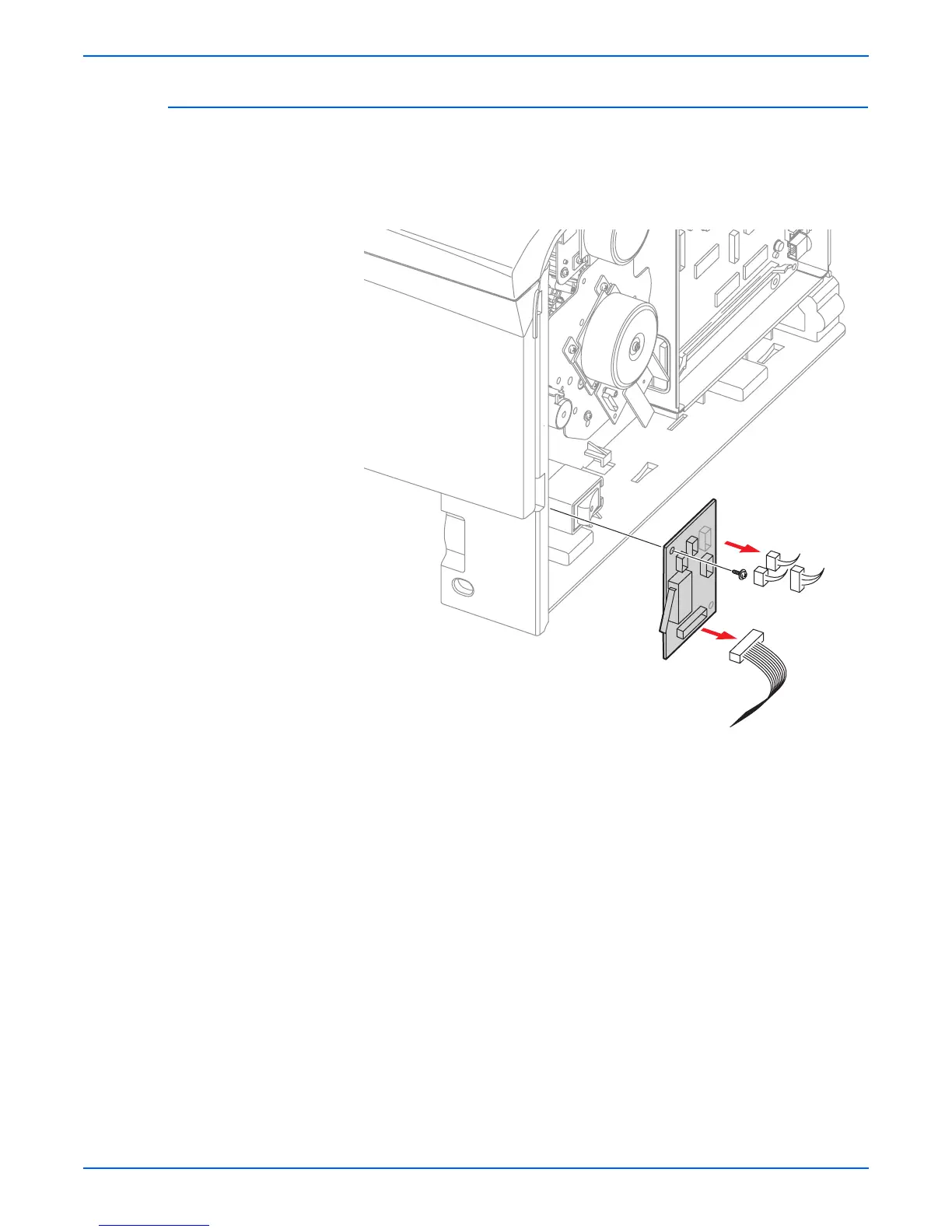

Joint Board (PL 1.3.61)
1. Remove the Right Cover (page 7-6).
2. Disconnect all connectors to the Joint Board.
3. Remove 1 screw securing the Joint Board to the chassis and remove.
Replacement Note
Be sure to insert the board in the securing slot before re-installing the
board. Secure with the single screw.
