7-10 Phaser 3600 Printer Service Manual
Service Parts Disassembly
Top Cover (PL 1.2.1)
N
o
t
e
Since the top cover is being redesigned, the following instructions will
change.
1. Open the Top Cover for access.
2. Remove the Print Cartridge and protect it from light exposure.
3. Remove the Right Cover (page 7-6).
4. Remove the Left Cover (page 7-7).

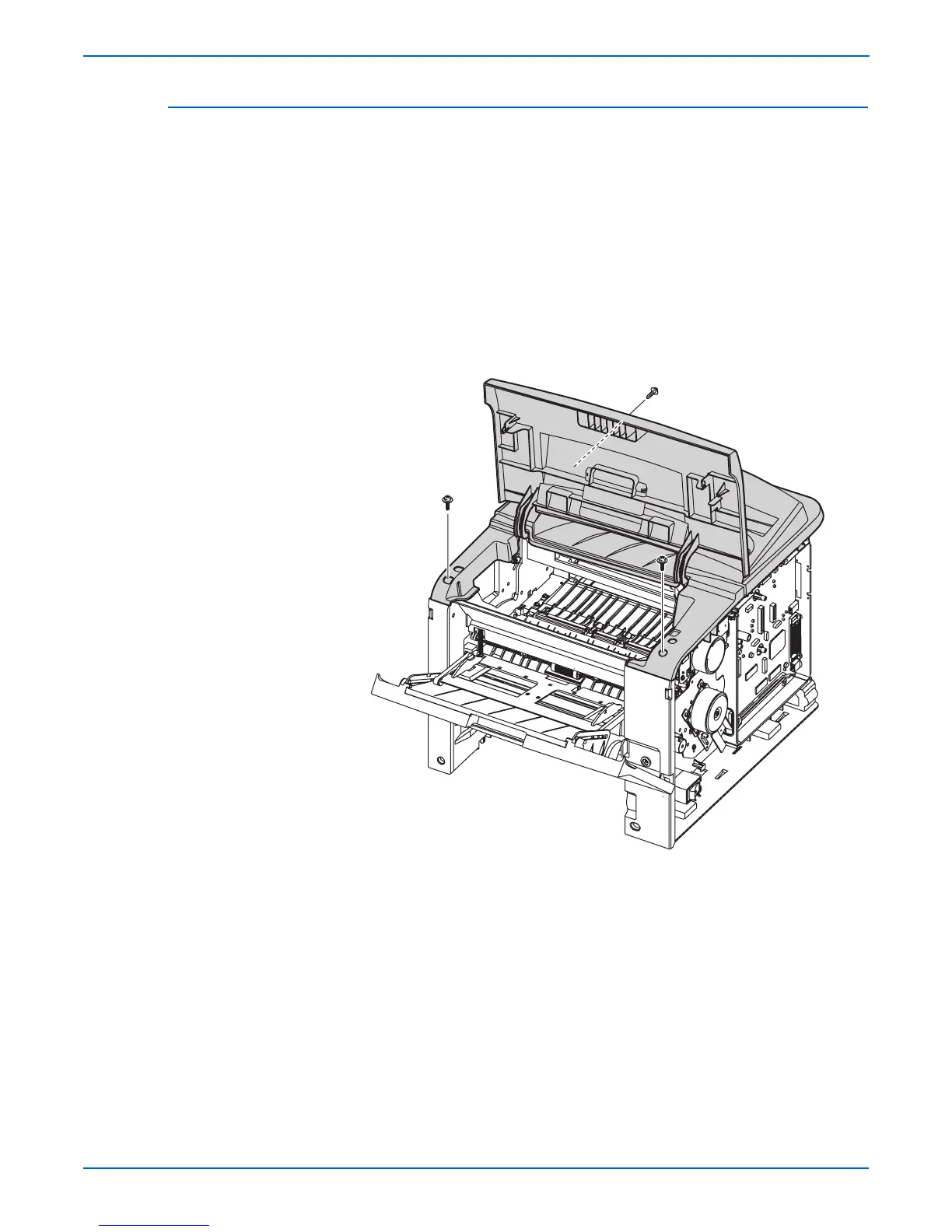

5. Remove the 2 screws located on the front of the Top Cover.
6. On the rear, right side of the printer, remove 1 screw securing the Top
Cover.
7. Release 3 tabs, one on the left, one on the right, and one on the rear of
the Top Cover.
Replacement Note
You may need to open the Rear Cover slightly before reinstalling the
Top Cover.
s3600-031
